Understanding the Voltage of LiFePO4 Battery: A Comprehensive Guide

LiFePO4 batteries have become one of the most preferred choices for applications ranging from electric vehicles (EVs) to solar power storage and portable energy devices. The voltage of a LiFePO4 cell is a crucial factor in understanding the battery's performance, efficiency, and longevity. In this guide, we will break down the importance of LiFePO4 cell voltage and its impact on the overall battery operation.

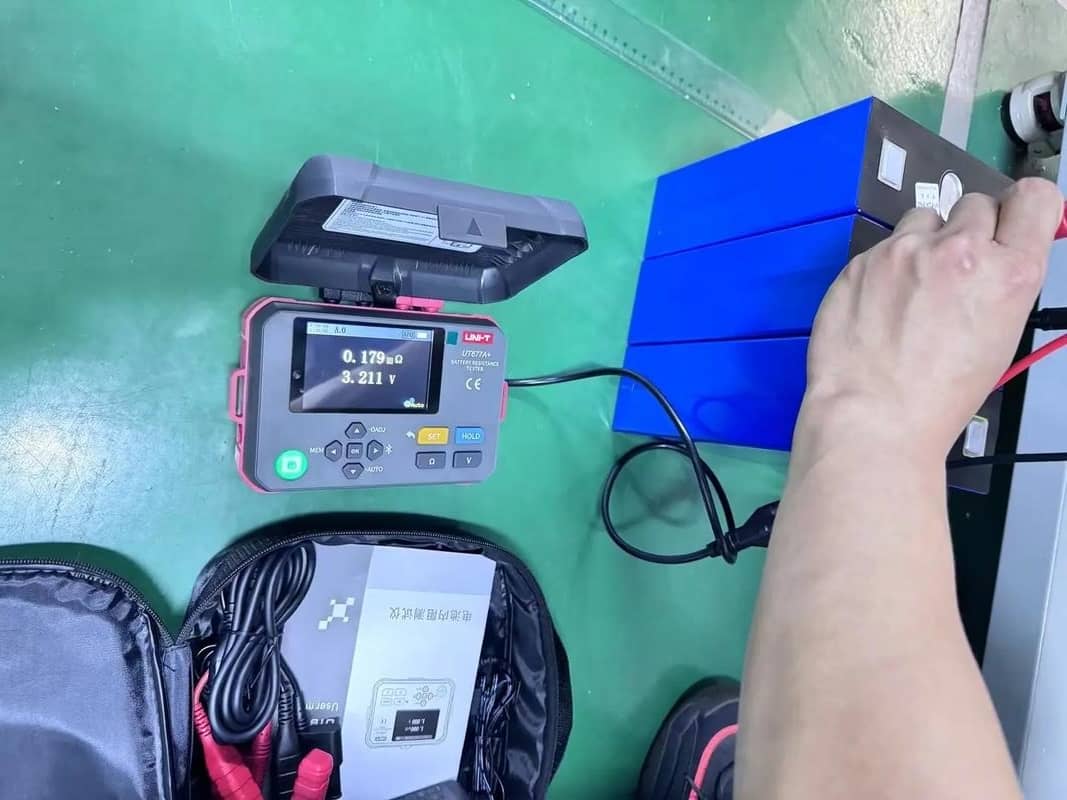

What is the Nominal Voltage of LiFePO4 Batteries?

The nominal voltage of a LiFePO4 battery is typically 3.2 volts per cell. This means that each individual cell, when fully charged and under normal conditions, outputs a steady voltage around this value. The nominal voltage is crucial for understanding how the battery will perform across its charge and discharge cycles.

However, LiFePO4 batteries are different from other lithium-ion batteries (like lithium cobalt oxide) in that they have a relatively flat discharge curve, meaning their voltage does not drop dramatically over most of the battery’s discharge cycle.

Voltage Range of LiFePO4 Cells

Each LiFePO4 battery cell has a specific voltage range that indicates its charge level:

• Fully Charged Voltage: When fully charged, a LiFePO4 cell can reach a voltage of approximately 3.6 to 3.65 volts.
• Nominal Voltage: The nominal voltage, as mentioned, is around 3.2 volts per cell. This is the voltage level the battery maintains during most of its discharge cycle.
• End-of-Discharge Voltage: The voltage is considered "empty" when it drops to about 2.5 volts per cell. Discharging a cell below this voltage can lead to permanent damage, as the battery might not be able to be recharged properly.

How to Calculate the Voltage of a LiFePO4 Battery Pack

The voltage of a LiFePO4 battery pack depends on how many cells are connected in series or parallel.

• Series Connection: When battery cells are connected in series, their voltages add up. For example:
  A 4S (4-cell series) LiFePO4 battery pack would have a nominal voltage of 12.8 volts (3.2 V × 4), with a fully charged voltage of 14.4 to 14.6 volts (3.6 V × 4).
• Parallel Connection: When cells are connected in parallel, the voltage remains the same as a single cell, but the capacity (measured in ampere-hours, Ah) increases.
  For example, connecting four 3.2V, 100Ah cells in parallel would give a pack with 3.2 volts and a 400Ah capacity.

Impact of Voltage on Battery Performance

Understanding the voltage characteristics of LiFePO4 cells is important because it impacts the performance, efficiency, and lifespan of the battery. Here are the key points to consider:

• Stable Discharge Curve: LiFePO4 batteries have a flat discharge curve, which means the voltage remains relatively constant until it begins to drop toward the end of the discharge cycle. This stability makes LiFePO4 batteries more efficient in powering devices for longer periods without the rapid voltage drop seen in other battery types. This is a major advantage in applications where stable power is crucial, such as in electric vehicles or renewable energy storage.
• Higher Efficiency: LiFePO4 batteries are efficient at delivering consistent voltage throughout their discharge. As a result, devices powered by these batteries experience fewer dips in power, leading to a more reliable user experience. This consistent output also minimizes voltage sag (temporary drops in voltage due to high loads), which can affect performance in high-demand applications.
• Impact on Charging and Discharging Cycles: The voltage range directly affects the charging and discharging cycles:
  Overcharging: Can cause permanent damage to the cell, leading to capacity loss and reduced lifespan. For LiFePO4, the charging process should stop when the voltage reaches 3.6 to 3.65 volts per cell.
  Over-discharging: (below 2.5 volts per cell) can cause irreversible damage, so proper battery management systems (BMS) are necessary to monitor and regulate the voltage levels.
• Safety and Thermal Management: One of the reasons LiFePO4 batteries are considered safer than other lithium batteries is their stable voltage. Unlike batteries like lithium cobalt oxide, which can be more volatile in response to overcharging or excessive temperature increases, LiFePO4 batteries are much less prone to thermal runaway.
  Thermal runaway is a condition where a battery becomes uncontrollably hot and could lead to fires or explosions. The inherent stability of LiFePO4 cells in terms of voltage helps prevent this issue, making them safer for various high-demand applications.

Factors Influencing LiFePO4 Battery Voltage

Several factors can influence the voltage of LiFePO4 batteries:

• Temperature: As with all batteries, temperature plays a role in the voltage. In cold weather, the battery’s voltage may drop temporarily, which can affect performance. High temperatures can cause the voltage to spike, which may damage the battery if not managed properly.
• Discharge Current: High current draws cause voltage sag, which is a temporary drop in voltage. When a large load is placed on the battery, the voltage will dip momentarily but should return to normal once the load is reduced. This behavior is especially important for electric vehicles, where the voltage drop could impact performance if not accounted for.
• State of Charge (SOC): The voltage will change depending on how much energy is stored in the battery. The State of Charge determines whether the battery is fully charged, partially charged, or nearing depletion, affecting the voltage readings.

Battery Management System (BMS) and Voltage Monitoring

To ensure the longevity and safety of LiFePO4 batteries, it is important to have a Battery Management System (BMS) in place. The BMS monitors and regulates the voltage of each cell to:

• Prevent overcharging and deep discharging: Ensures that the voltage does not exceed safe limits.
• Balancing the cells: In a multi-cell pack, the BMS ensures that all cells maintain the same voltage to prevent imbalances that can lead to premature failure.
• Over-temperature protection: Monitors the temperature of each cell to prevent overheating and potential damage.

Conclusion

LiFePO4 batteries offer a stable and efficient energy storage solution, with their voltage stability being a key factor in their performance. Understanding the voltage range, the impact on battery operation, and the factors that affect voltage can help maximize the lifespan and performance of these batteries. Whether you are using LiFePO4 batteries in an electric vehicle, a solar system, or for other applications, maintaining proper voltage levels and using a Battery Management System (BMS) is crucial for ensuring optimal performance, safety, and longevity.

By considering these voltage aspects, you can better harness the benefits of LiFePO4 technology and ensure reliable and efficient power solutions.
