Thunder Sky Winston 400kwh Industrial lithium battery energy storage cabinet
Product Details:
Place of Origin: China
Brand Name: Thunder Sky Winston
Certification: CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: /
Payment Terms: T/T
- Nominal Capacity: 550Ah Nominal Voltage: 768V
- Internal Impedence: / Operating Votage: 672~876V
- Dimension: 2000 ×1300× 2550mm Battery Weight: Around 6 Tons
Product Description
Product Advantages
High security
- Water-based lithium yttrium battery cell, high temperature resistance and no explosion
- IP56 protection for outdoor applications
- C5 anti-corrosion, 20 years reliability
- Independent fire protection system
- Stand-alone thermal management system
Long life Span
- Low self-discharge rate, long cycle life cell, service life of more than 20 years.
- Integrated thermal management system, effectively control the temperature difference of the battery cell and improve the service life of the battery.
High integration
- Modular design, compatible with 600-1000V systems
- 100~500Kw flexible expandable power module
- Integrated independent EMS on-premise and cloud-based energy management systems

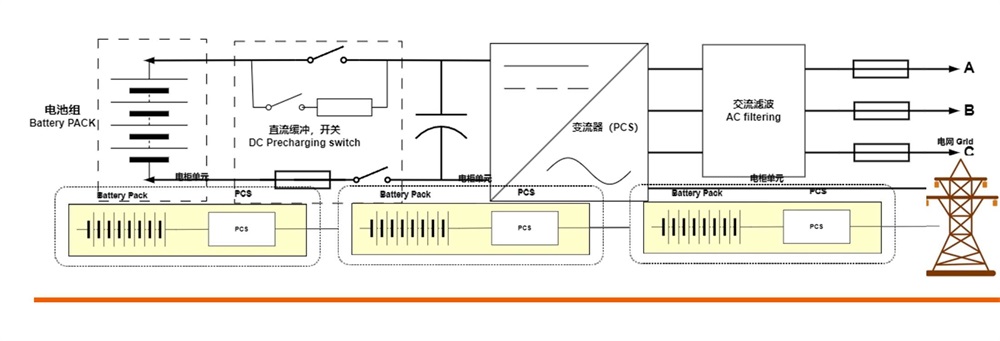

Product Circuit Diagra
Parameters
| Main Parameters | TSW-BES400KWH | Remark |
|---|---|---|
| Battery Type | LYP | Water-based lithium yttrium batteries |
| Cabinet Type | 1P40S × 6 | 240pcs of cells |
| Nominated Capacity | 550Ah | |
| Nominated Energy | 400Kwh | |
| DC Voltage | 768V | 672~876V |
| AC Voltage | 400V(-15%～+15%) | 50Hz/60Hz± 2.5Hz |
| Charge-discharge Power | 125Kw | Scalable |
| Operating Temperature | -25~75℃ | |
| Ingress Protection | IP56 | |
| Cabinet Weight | Around 6 Tons | |
| Cabinet Size | 2000 ×1300× 2550 | L × D × H (mm) |
