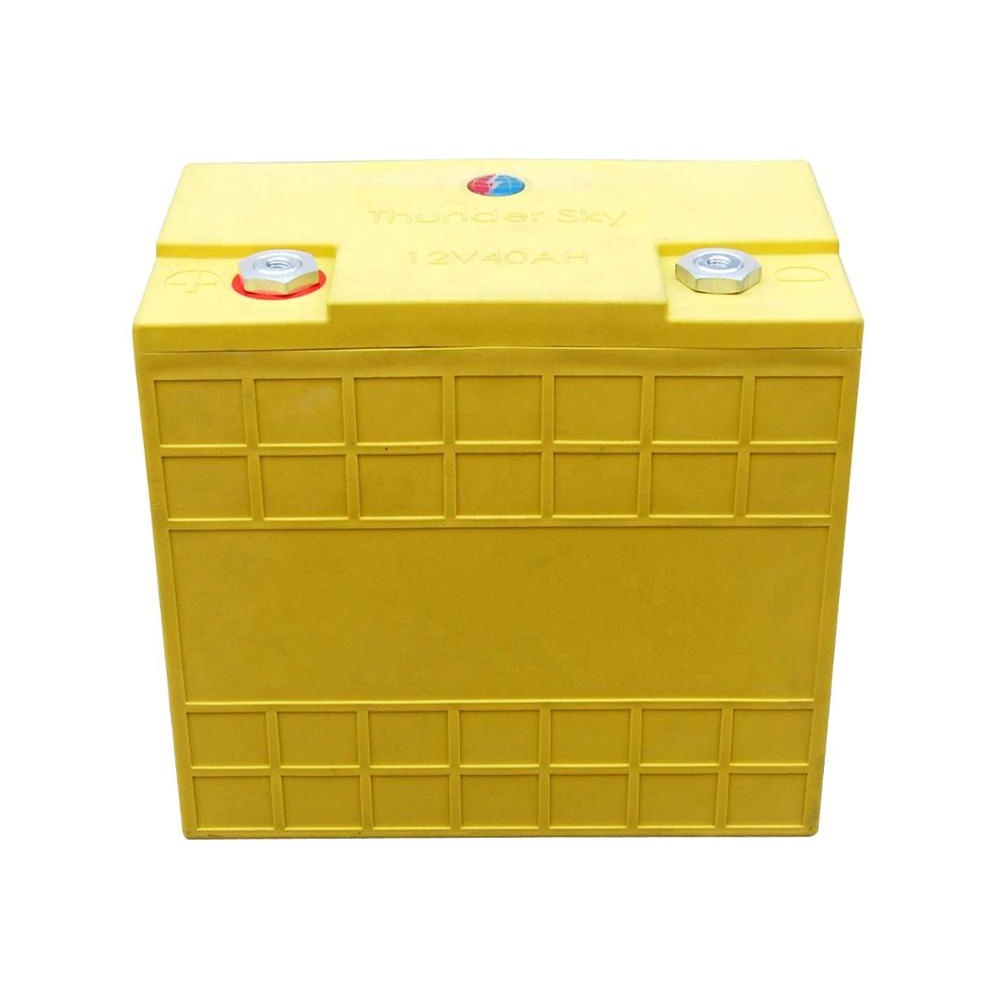

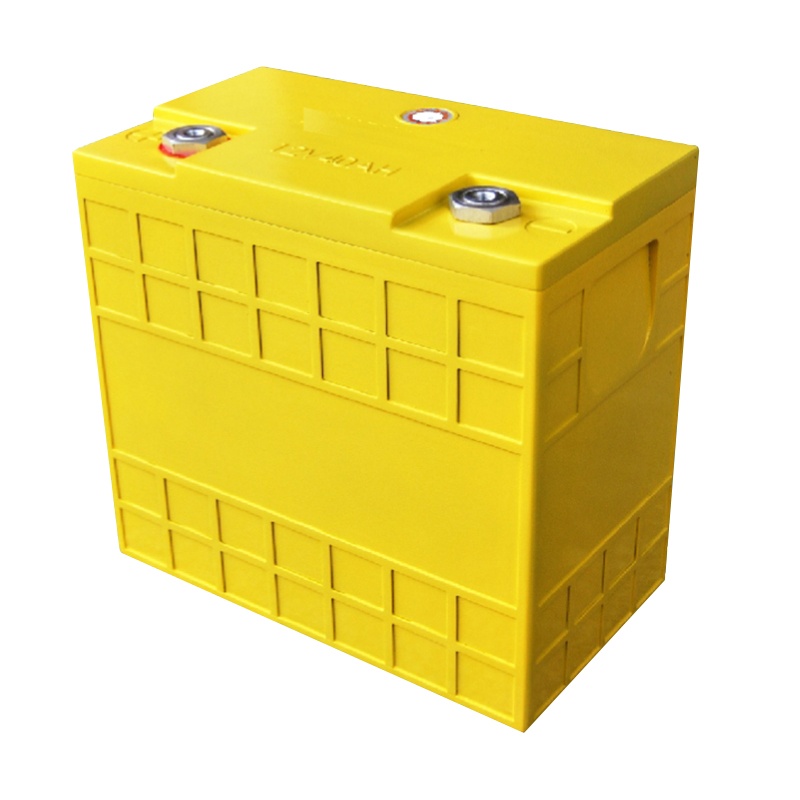

Thunder Sky Winston TSWB-LP12V40AH 12V 40AH Battery Module Pack
Product Details:
Place of Origin: China
Brand Name: Thunder Sky Winston
Certification: CE
Model Number: TSWB-LP12V40AH
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 40Ah Nominal Voltage: 12V
- Internal Impedence: ≤5(mΩ) Operating Votage: 11V-14.5V
- Dimension: 225mm*125mm*208mm Battery Weight: 7.9kg±200g
Product Description
Thunder Sky Winston TSWB-LP12V40AH 12V 40AH Battery Module Pack, with a 5-10Years cycle life, making it ideal for a wide range of applications, including electric vehicles, ships, communications, smart networks, solar storage systems, industrial and commercial energy storage, and home energy storage.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Product Features
- High level of Safety:Never Explode,can be over-charged or over-discharged;
- Large capacity:Single cell capacity maximum up to 10000Ah;
- Long life:Up to 25 years;
- Pollution Free:Water-based positive and negative electrodes do not contain nickel,cobalt,PVDF(manufacturing,use,recycling are all green);
- Mature technology:Cell laminated structure,standard fully automatedproduction equipment;
- Low Self-discharge rate:Less than 1%every month;
- Wide Applicable Temperature:-45~85℃
Specification
| MODEL | TSWB-LP12V40AH | |
| Nominal Capacity | 40AH | |
| Specification | L | 225mm |
| W | 125mm | |
| H | 208mm | |
| Operating Voltage | Charge | 14.5V |
| Discharge | 11(V) | |
| Internal Resistance | ≤5(mΩ) | |
| Max Discharge Current | Constant Current | ≤3CA |
| Impulse Current | ≤10CA | |
| Standard Charge/ Discharge Current |
20A(0.5CA) | |
| Cycle Life | 5-10Years | |
| Temperature Durability Of Case |
≤200℃ | |
| Operating Temperature | Charge | -45℃~85℃ |
| Discharge | ||
| Storage Humidity | ≤75%RH | |
| Self-discharge Rate | ≤1%（Monthly） | |
| Weight | 7.9kg±200g | |

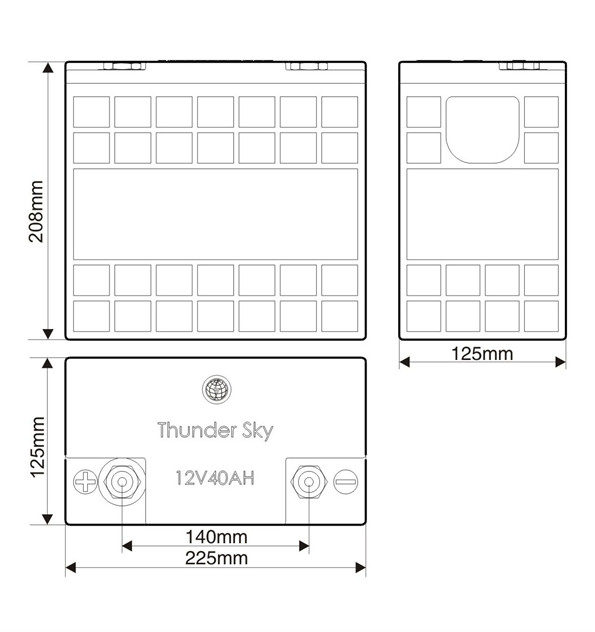

Dimension and Details

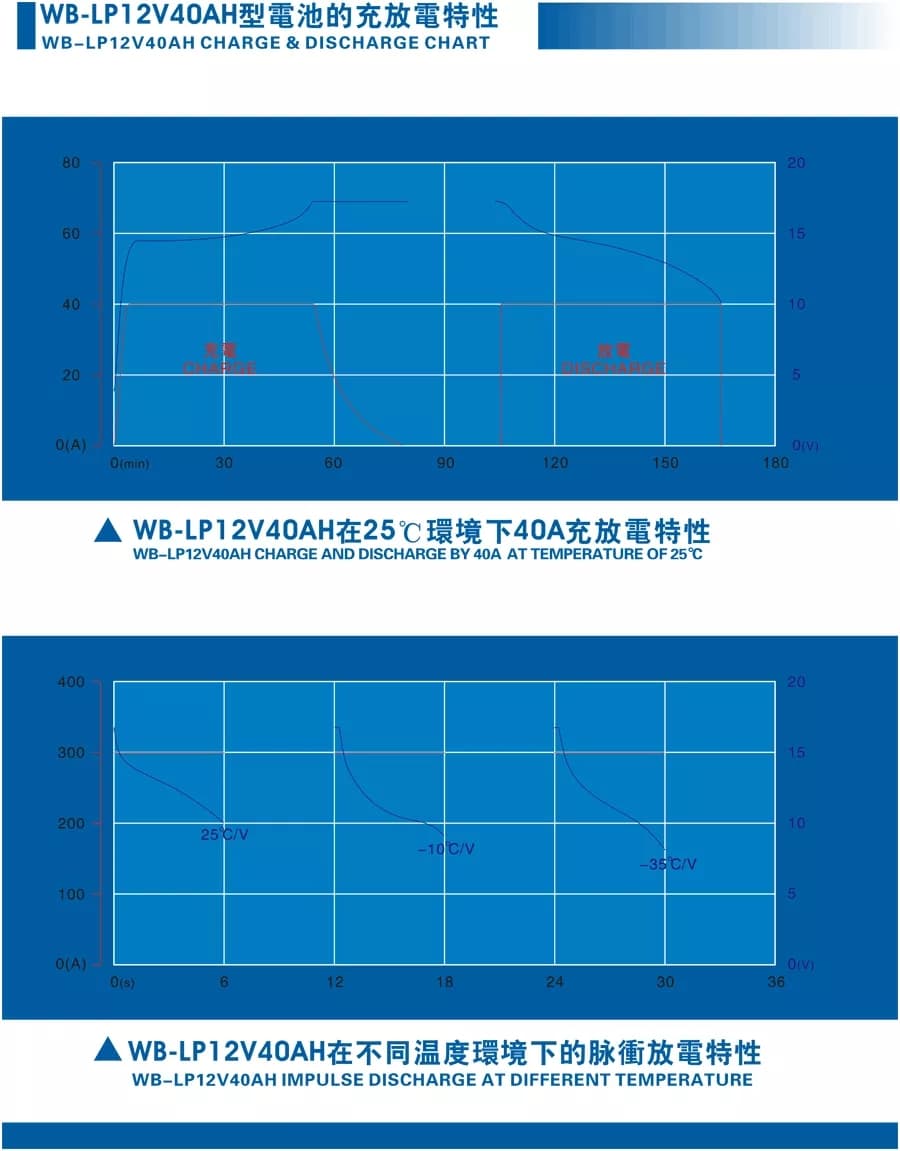

Electrical Performance Diagram
Certification
Thunder Sky Winston brand battery has passed a number of authority safety testing and quality certification
- Environmental Management System Certification: ISO14001
- Occupational Health System Certification: OHSAS18001
- Quality Management System Certification: IATF16949
- USA PONY, JBI Certification
- CE CERTIFICATE, DAS, CTS, BCC, and SAE Certification
