REPT CB39148107EA 3.2V 72Ah LiFePO4 Battery Cell
Product Details:
Place of Origin: China
Brand Name: REPT
Certification: CE
Model Number: CB39148107EA
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: Plywood Cases
Payment Terms: T/T
- Nominal Capacity: 72Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤0.50 mΩ Operating Voltage: 2.5~3.65 V
- Dimension: 39.72±0.30*148.66 ± 0.50*107.87 ± 0.50mm Battery Weight: 1.38 ± 0.05kg
Product Description
100% brand new, grade-A REPT CB39148107EA 3.2V 72Ah LiFePO4 Battery Cell with a complete QR code, featuring a long life cycle, extended calendar life warranty period, low internal resistance, and high discharge rate. Ideal for consumer electronics, boats, uninterruptible power supplies, solar energy storage systems, electric power systems, electric forklifts, DIY projects, and more.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Product Features
- Automated production equipment: Highly automated production equipment to ensure battery consistency
- Good safety performance: Square aluminum shell structure, high-precision explosion-proof valve design, good safety performance
- Long life: Long cycle life
- Green and environmentally friendly: Green and environmentally friendly, products comply with various certification standards
- Platform is stable: The internal resistance of the battery is low, the discharge rate is high, and the discharge platform is stable
- Exclusive customization: Can be designed and customized according to customer needs
Specification
| Item | Specification | Comment |
|---|---|---|
| Typical Capacity | 73Ah | 25 ± 2℃ , 0.33C/0.33 C |
| 72Ah | 25 ± 2℃ , 1.0C/1.0 C | |
| Typical Voltage | 3.22 V | 25 ± 2℃ , 0.33 C |
| 3.17 V | 25 ± 2℃ , 1.0 C | |
| Operating Voltage | 2.5-3.65 V | 0℃＜T≤55℃ |
| 2.0-3.65 V | -30℃≤T≤0℃ | |
| Standard Discharging Current |
72 A | 25±2℃ |
| Maximum Continuous Discharging Current |
72 A | 25±2℃ |
| Maximum Discharging Current |
216 A | @30s ，SOC ≥50% |
| Standard Charging Current |
36A | 25±2℃ |
| Maximum Continuous Charging Current |
72 A | 25±2℃ |
| Maximum Charging Current |
144 A | @10s ，SOC ≤50% |
| Operating Temperature |
-10℃≤T≤60℃ | Charge |
| -30℃≤T≤60℃ | Discharge | |
| Storage Temperature |
-40℃ ~ 60℃ | Storage ambient humidity < 95%ROH ，no condensation |
| Typical Dimension | Thickness: 39.72±0.30 mm | @3000 ± 200 N ，27%SOC |
| Width: 148.66 ± 0.50 mm | ||
| Shoulder Height : 107.87 ± 0.50mm | ||
| Total Height : 110.01 ± 0.50 mm | ||
| Cathode Material | LiFeO4 | |
| Cell Weight | 1.38 ± 0.05kg | |
| Energy Density | 165Wh/kg | 1.0C |
| 370 Wh/L | ||
| Battery Internal Resistance | ≤0.50 mΩ | 100% ~ 50% SOC |

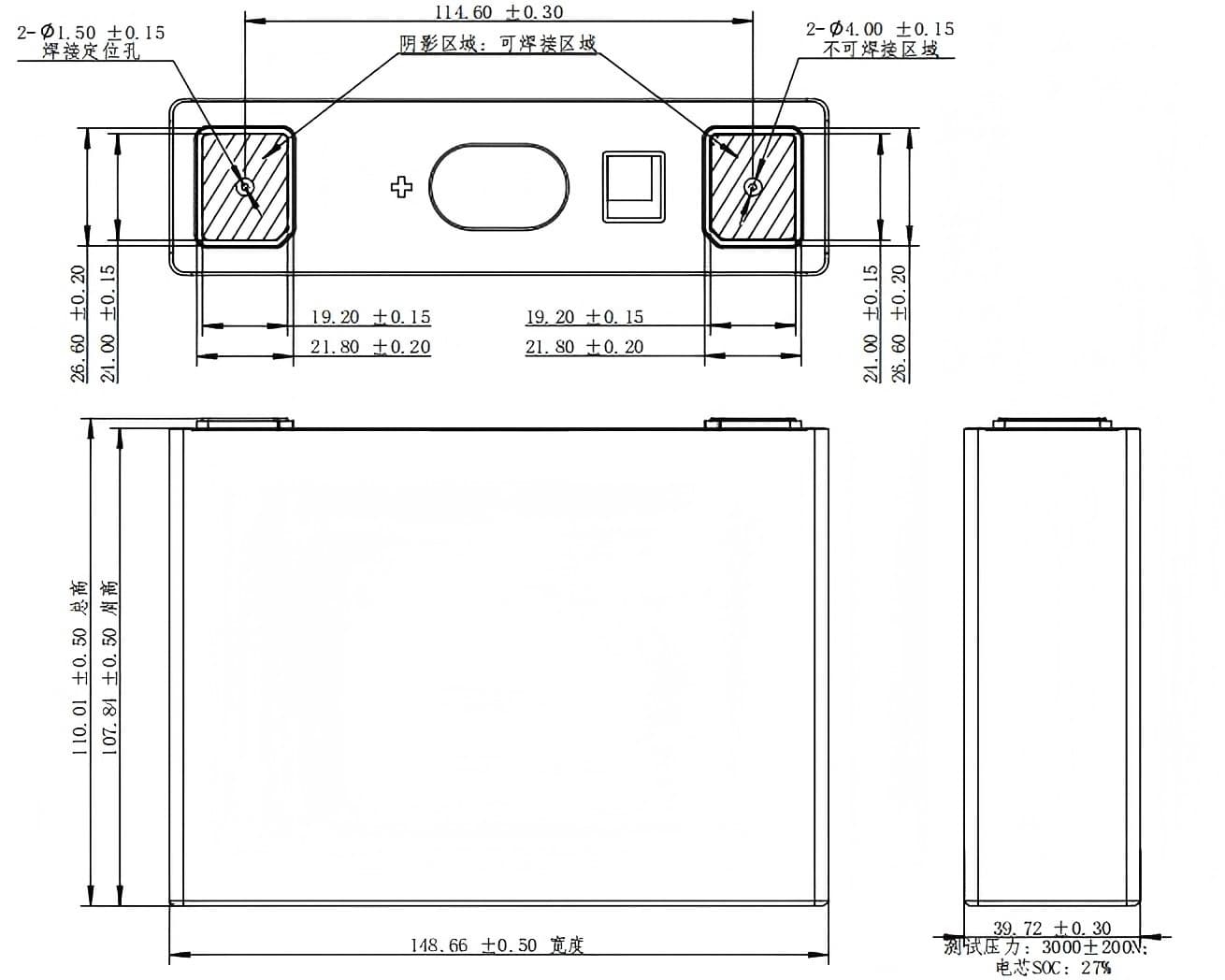

Dimension and Details
Certification
- · Report from the Electric Power Research Institute & Non-Electrical Research Institute + CGC certification
- · International EU certification
- · American UL certification (UL1973&UL1642)
- · UL9540A report
- · German Rhine ISO26262
- · Korea KC certification
- · India BIS certification
- · International transport appraisal
- · Functional safety management system certification (BMS), etc.
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
