REPT 3.2V 280Ah LiFePO4 Battery Prismatic Cell
Product Details:
Place of Origin: China
Brand Name: REPT
Certification: CE
Model Number: PC-0B1-72174L4-AH
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 280Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤0.30mΩ Operating Voltage: 2.5～3.65V
- Dimension: 71.55*173.93±0.3*204.59±0.5mm Battery Weight: 5.34±0.15kg
Product Description
100% brand new, grade-A REPT 3.2V 280Ah LiFePO4 Battery Prismatic Cell with a complete QR code, featuring a long life cycle, extended calendar life warranty period, low internal resistance, and high discharge rate. Ideal for consumer electronics, boats, uninterruptible power supplies, solar energy storage systems, electric power systems, electric forklifts, DIY projects, and more.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Specification
| Item | Specification |
|---|---|
| Typical Capacity | ≥280Ah (0.5C) |
| Typical Voltage | 3.22C |
| Operating Voltage | 0℃~55℃：2.5-3.65V -30℃~0℃：2.0-3.65V |
| Standard Discharging Current | 140A |
| Maximum Continuous Discharging Current | 280A |
| Maximum Discharging Current | 560A |
| Standard Charging Current | 140A |
| Maximum Continuous Charging Current | 280A |
| Maximum Charging Current | 560A |
| Operating Temperature | Charge: 0℃~55℃ Discharge: -30℃~55℃ |
| Storage Temperature | -30℃~60℃ |
| Typical Dimension | Thickness: 71.55mm Width: 173.93±0.3mm Shoulder Height: 204.59±0.5mm Total Height: 207.23±0.5mm |
| Cathode Material | LiFeO4 |
| Cell Weight | 5.34±0.15kg |
| Energy Density | ≥165Wh/kg |
| Internal Resistance（1KHz） | ≤0.30mΩ |

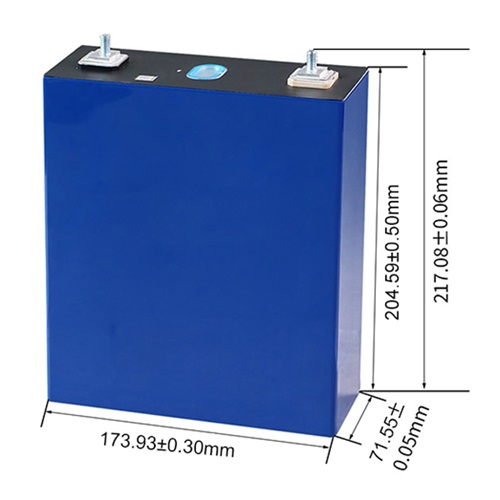

Dimension and Details
Certification
- · Report from the Electric Power Research Institute & Non-Electrical Research Institute + CGC certification
- · International EU certification
- · American UL certification (UL1973&UL1642)
- · UL9540A report
- · German Rhine ISO26262
- · Korea KC certification
- · India BIS certification
- · International transport appraisal
- · Functional safety management system certification (BMS), etc.
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
