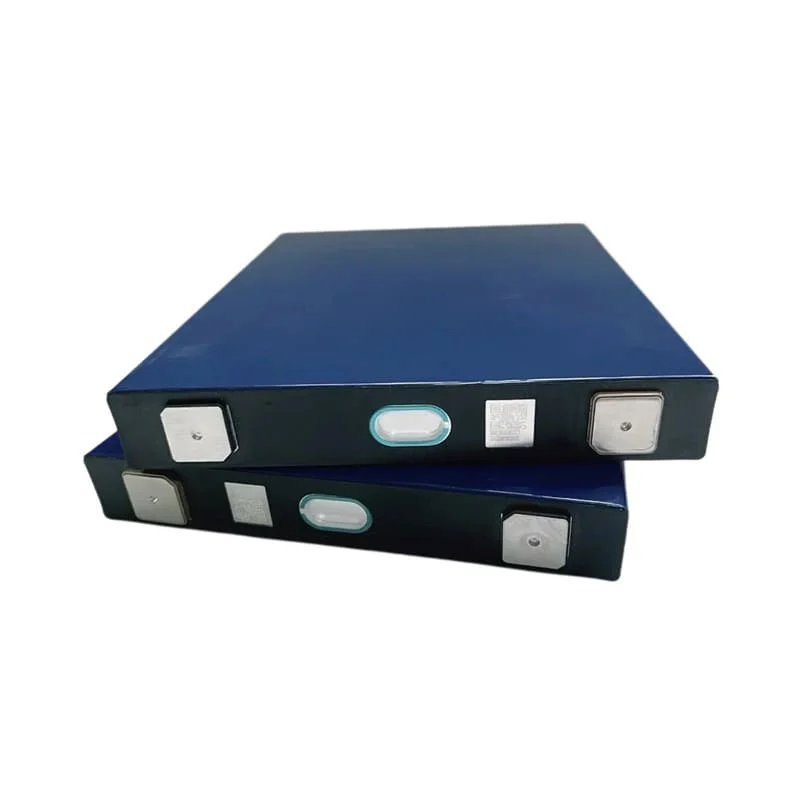

REPT CB56 3.2V 100Ah LiFePO4 Battery Cell
Product Details:
Place of Origin: China
Brand Name: REPT
Certification: CE
Model Number: CB56
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 100Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤0.4mΩ Operating Voltage: 2.5~3.65V
- Dimension: 52.32±0.5*148.40±0.6*119.00±0.6mm Battery Weight: 1.91±0.15kg
Product Description
100% brand-new, grade-A REPT CB56 3.2V 100Ah LiFePO4 battery cell with a complete QR code. It features a long cycle life, extended calendar life, low internal resistance, and a high discharge rate. Perfect for use in consumer electronics, power tools, boats, uninterruptible power supplies (UPS), electric wheelchairs, solar energy storage systems, golf carts, electric power systems, electric bicycles/scooters, electric forklifts, submarines, and electric vehicles.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Product Features
- Automated production equipment: Highly automated production equipment to ensure battery consistency
- Good safety performance: Square aluminum shell structure, high-precision explosion-proof valve design, good safety performance
- Long life: Long cycle life
- Green and environmentally friendly: Green and environmentally friendly, products comply with various certification standards
- Platform is stable: The internal resistance of the battery is low, the discharge rate is high, and the discharge platform is stable
- Exclusive customization: Can be designed and customized according to customer needs
Specification
| Item | Specification | Comment |
|---|---|---|
| Nominal Capacity | 100Ah | 25±2℃/0.5C |
| Nominal Energy | 320Wh | 25±2℃/0.5C |
| Operating Voltage | 2.5~3.65V 2.0~3.65V |
T>0°C T≤0°C |
| Maximum Discharging Current | 300A | 25℃, 50%SOC, 30s |
| Maximum Charging Current | 200A | 25℃, 50%SOC, 10s |
| Working Temperature | Charge: 0℃~55℃ Discharge: -20℃~55℃ |
|
| Storage Temperature | -30℃~60℃ | |
| Dimensions | Thickness: 52.32±0.5mm Width: 148.40±0.6mm Height: 119.00±0.6mm |
|
| Cathode Material | Lithium-iron-phosphate | |
| Cell Weight | 1.91±0.15kg | |
| Energy Density | 165Wh/kg | 0.5C |
| Internal Resistance | ≤0.4mΩ | |
| Shipping capacity | 27±1Ah | 27%SOC |
| Cycle Life | ≥6000 cycles | 25±2℃, 100%DOD, 0.5C/0.5C |
| Recommended SOC Range | 3%~100% | |
| Standard charge current | 0.5C | 25±2℃ |
| Maximum continuous charge current | 1C | 25±2℃ |
| Standard charge voltage | 3.65V | |
| Standard charge temperature | 25±2℃ | Cell temperature |
| Standard discharge current | 0.5C | 25±2℃ |
| Maximum continuous discharge current | 1.5C | Not for cycle |
| Standard discharge temperature | 25±2℃ | Cell temperature |
| Discharge temperature range | -20-55℃ |
Dimension and Details

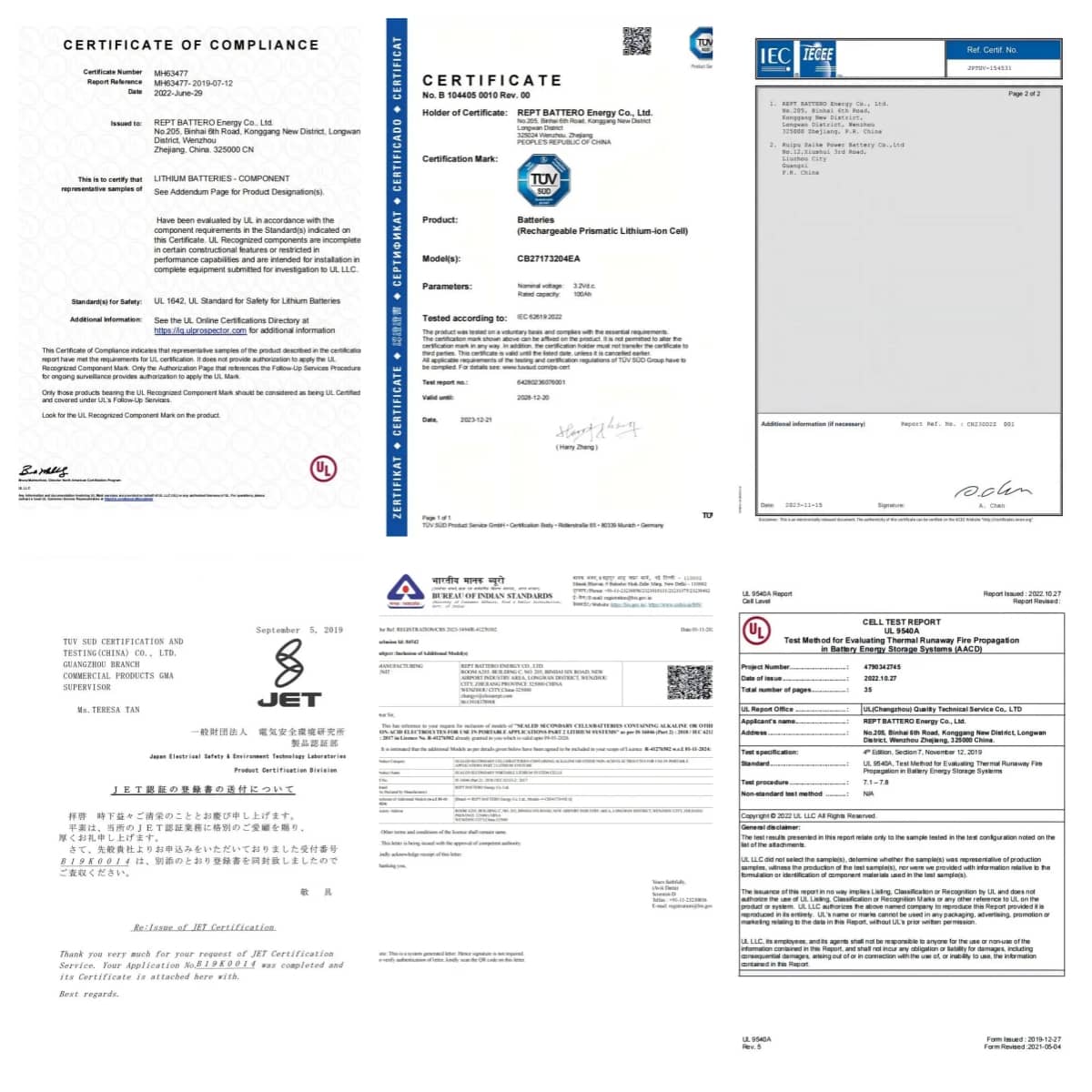

Certification
- · Report from the Electric Power Research Institute & Non-Electrical Research Institute + CGC certification
- · International EU certification
- · American UL certification (UL1973&UL1642)
- · UL9540A report
- · German Rhine ISO26262
- · Korea KC certification
- · India BIS certification
- · International transport appraisal
- · Functional safety management system certification (BMS), etc.
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
