CORNEX PF300-135A 3.2V 135Ah LiFePO4 Battery
Product Details:
Place of Origin: China
Brand Name: CORNEX
Certification: CE
Model Number: PF300-135A
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 135Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤0.6mΩ Operating Votage: 2.0V～3.65V
- Dimension: 33.2*300.7*112.4mm Battery Weight: 2.47kg±0.10Kg
Product Description
100% brand new, grade-A CORNEX PF300-135A 3.2V 135Ah LiFePO4 Battery offers a low internal resistance, long cycle life, high safety and a wide operating temperature range. Suitable for home appliances, boats, golf carts, submarines, electric bicycles/scooters, electric forklifts, electric vehicles, power systems, solar energy storage systems, and uninterruptible power supplies.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Specification
| Item | Spec | Remark |
|---|---|---|
| Nominal voltage | 3.20V | RT |
| Rated discharging capacity | 135Ah | RT ，2.5V-3.65V， |
| AC internal Resistance | ≤0.6mΩ | RT ，1KHz |
| Operating voltage | 2.5V～3.65V | >0℃ |
| 2.0V～3.65V | ≤0℃ | |
| Cut-off discharging voltage | 2.5V | >0℃ |
| 2.0V | ≤0℃ | |
| Cut-off charging | 3.65V | |
| Energy density | ～180Wh/kg | |
| Cycle life | ≥2500 cycles（80%EOL） | 25℃ |
| Maximum pulse charging current |
2.7C | RT ，0~80%SOC ，10s |
| Maximum continuous charging current |
1.10C | 15℃ ~45℃ |
| Maximum pulse discharging current |
3C | RT ，≥20% SOC ，30s |
| Maximum continuous discharging current |
1.30C | 15℃~45℃ |
| Allowable discharging temperature range |
-30℃~55℃ | |
| Weight | 2.47kg±0.10Kg | N.A |
| Dimension | Thickness：（33.2±0.5）mm | Thickness test condition: |
| Width：（300.7±0.5）mm | ||
| Shoulder height：（109.8±0.5）mm | ||
| Total height：112.4±0.5mm |

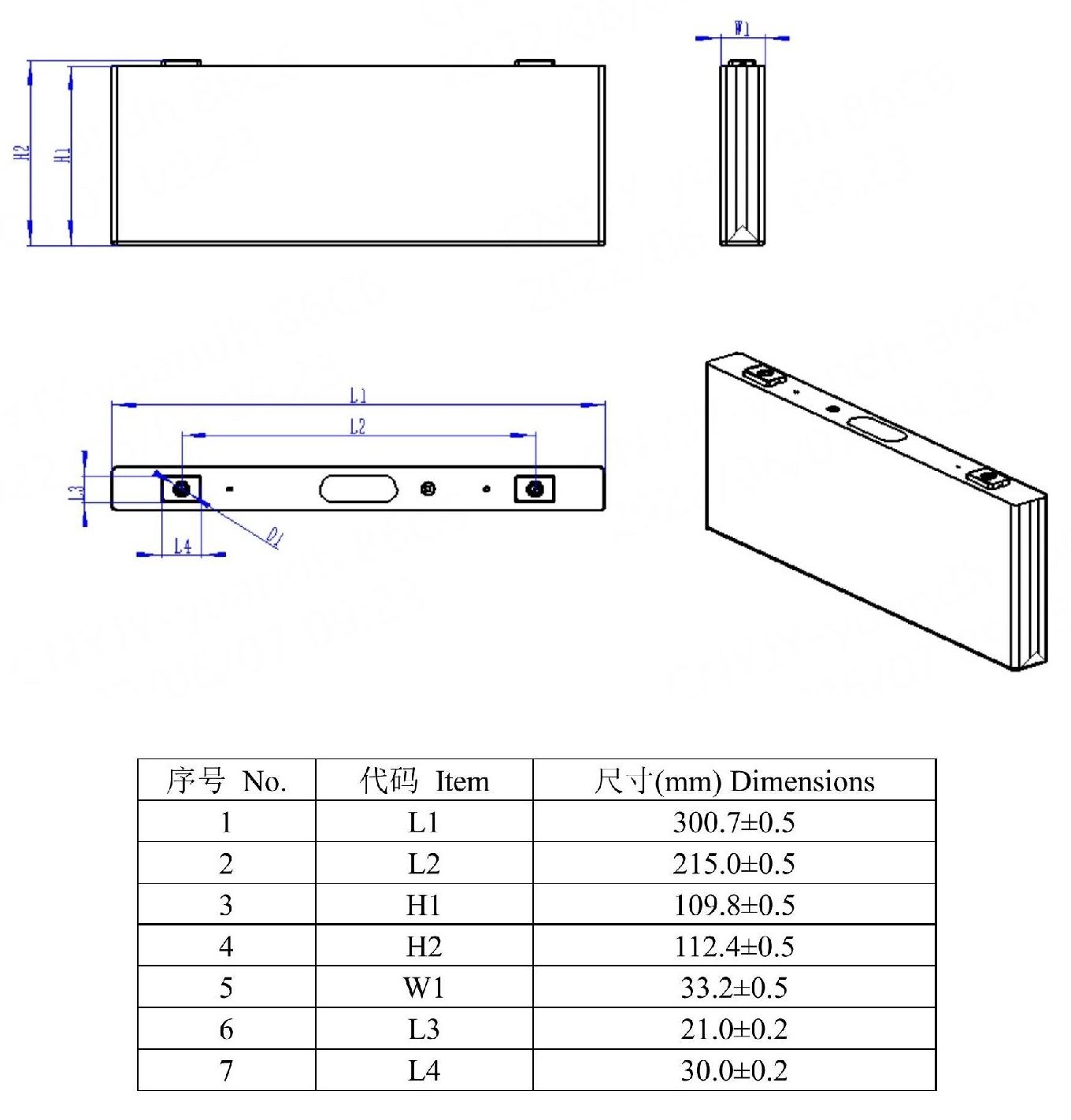

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
