GBS GBS-LFP100Ah-A 3.2V 100Ah Solar Battery Prismatic LiFePO4 Cell
Product Details:
Place of Origin: China
Brand Name: GBS
Certification: CE
Model Number: GBS-LFP100Ah-A
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: Original custom Plywood cases
Payment Terms: T/T
- Nominal Capacity: 100Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤0.4mΩ Operating Voltage: 2.5V～3.55V
- Dimension: 126*65*243±1mm Battery Weight: 2.9±0.1kg
Product Description
100% brand new, grade-A GBS GBS-LFP100Ah-A 3.2V 100Ah Solar Battery Prismatic LiFePO4 Cell offers a low internal resistance, long cycle life, high safety and a wide operating temperature range. Suitable for home appliances, boats, golf carts, submarines, electric bicycles/scooters, electric forklifts, electric vehicles, power systems, solar energy storage systems, and uninterruptible power supplies.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Product Features
- GOOD SAFETY PERFORMANCE:
When the pressure inside the batteryis too large,the one-way safety valvewill release gas and heat to make surebattery perfom well. - GOOD CYCLE LIFE TIME:
The discharge capacity is stil over 80% after 2000 cycle times of single cell(80%DOD). - FAST CHARGING:
It could be charged to 80%within 20minutes and charged full with 2-3h.
Specification
| Item | Parameter Specification |
|---|---|
| Model | GBS-LFP100Ah-A |
| Nominal Capacity | 100Ah |
| Minimum Capacity | 100Ah |
| Nominal Voltage | 3.2V |
| Internal Resistance | ≤0.4mΩ |
| Standard Charge | 0.25C |
| Fast Charge | 1.0C |
| End of Charge | 3.55V |
| Standard Discharge | 0.5C |
| Max Discharge | 3.0C |
| Instantaneous Discharge | 5C(10S) |
| End of Discharge | 2.5V |
| Working Temperature | -20~60℃ |
| Cycle Life | >3000 cycles（0.5C） |
| Battery Weight | 2.9±0.1kg |
| Shell Material | PP |
| Cell Dimensions | 126*65*243±1mm |

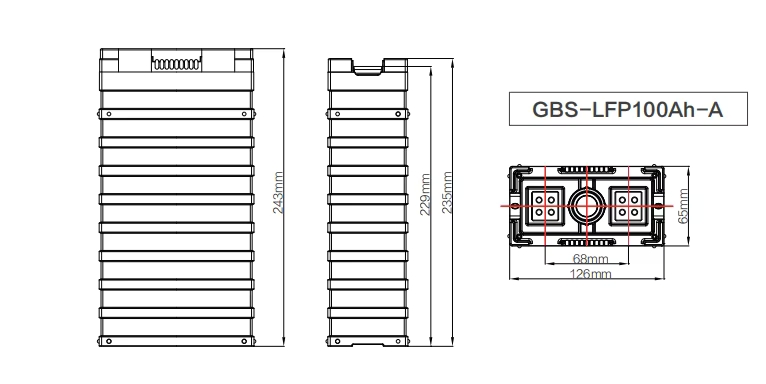

Dimension and Details

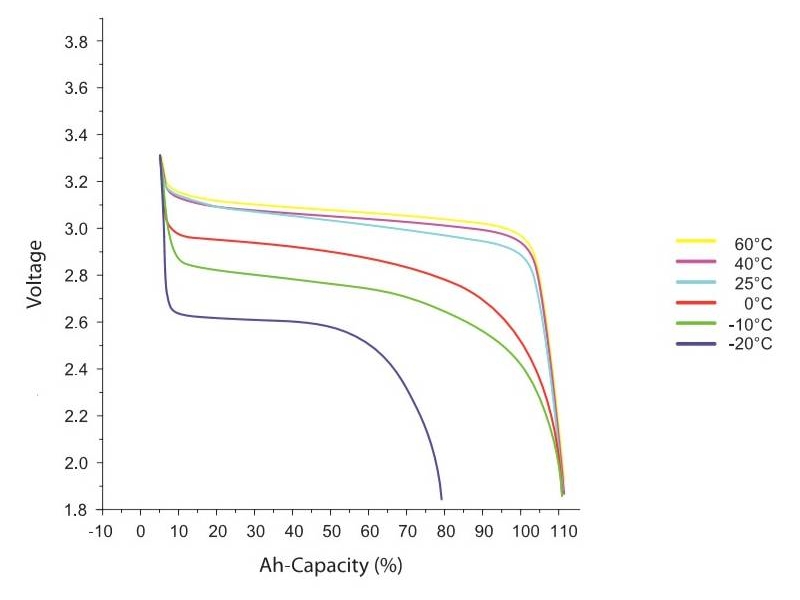

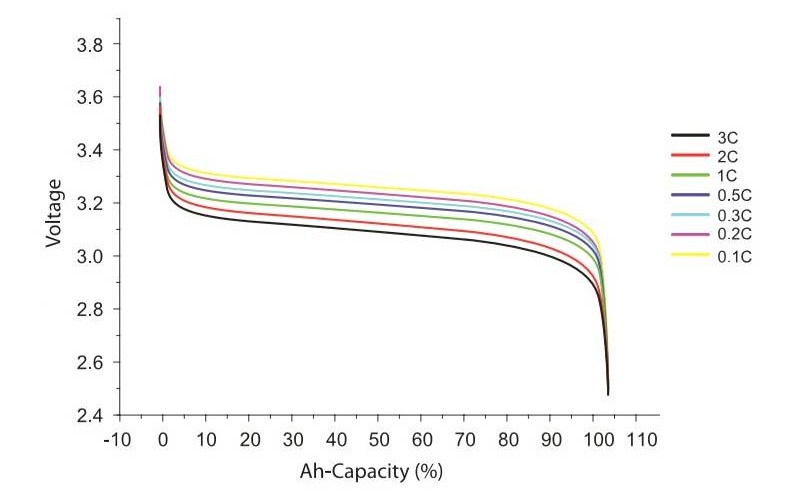

Electrical Performance Diagram
Certification
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
