EVE MB31 3.2V 314Ah LiFePO4 Battery Prismatic Cell for ESS
Product Details:
Place of Origin: China
Brand Name: EVE
Certification: CE
Model Number: MB31
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 314Ah Nominal Voltage: 3.2V
- Internal Impedence: / Operating Votage: /
- Dimension: 207.2*173.7*71.7mm Battery Weight: 5.6kg
Product Description
EVE MB31 3.2V 314Ah Lithium Iron Phosphate Battery features a low internal resistance design, high discharge rate, and stable discharge platform, making it ideal for a wide range of applications, including Electric energy storage、Industrial and commercial energy storage、Household energy storage、Ship energy storage、Solar Energy Storage Systems.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Product Features
- · High Consistency: Fully automated production lines and high-precision equipment ensure battery consistency.
- · Stable Performance: Low internal resistance, high discharge rate, and stable discharge.
- · Long Lifespan: Up to 8000 cycles, with a capacity retention rate of ≥80% under (25°C 0.5C/0.5C) conditions.
- · High Safety: High-precision explosion-proof valve design, ensuring safety with no leakage.
- · Environmentally Friendly: Certified by environmental management systems.
- · Customization: Tailored to customer requirements.
Specification
| Item | Parameter |
|---|---|
| Nominal Capacity | 314Ah |
| Nominal Voltage | 3.2V |
| Initial IR | 0.1 8 mΩ ±0.05 mΩ |
| Weight | 5 600 g ±300 g |
| Charging Cut-off Voltage | 3.65 V |
| Discharging Cut-off V oltage | 2.5 V T >0°C 2.0 V T ≤0°C |
| Charging Temperature | 0~60°C |
| Discharging Temperature | - 30~60°C |
| Storage Temperature | 0~35°C |
| Model Name | MB31 |
| Cycle Life | 8000 Cycles |
| Standard Charging Power | 0.5P |
| Standard Discharging Power | 0.5P |
| Height(H) with terminal | 207.2 mm ±0.5 mm |
| Height(h) without terminal | 204.6 mm ±0.5 mm |
| Length | 173.7 mm ±0.5 mm |
| Thickness | 71.7 mm ±0.8 mm |

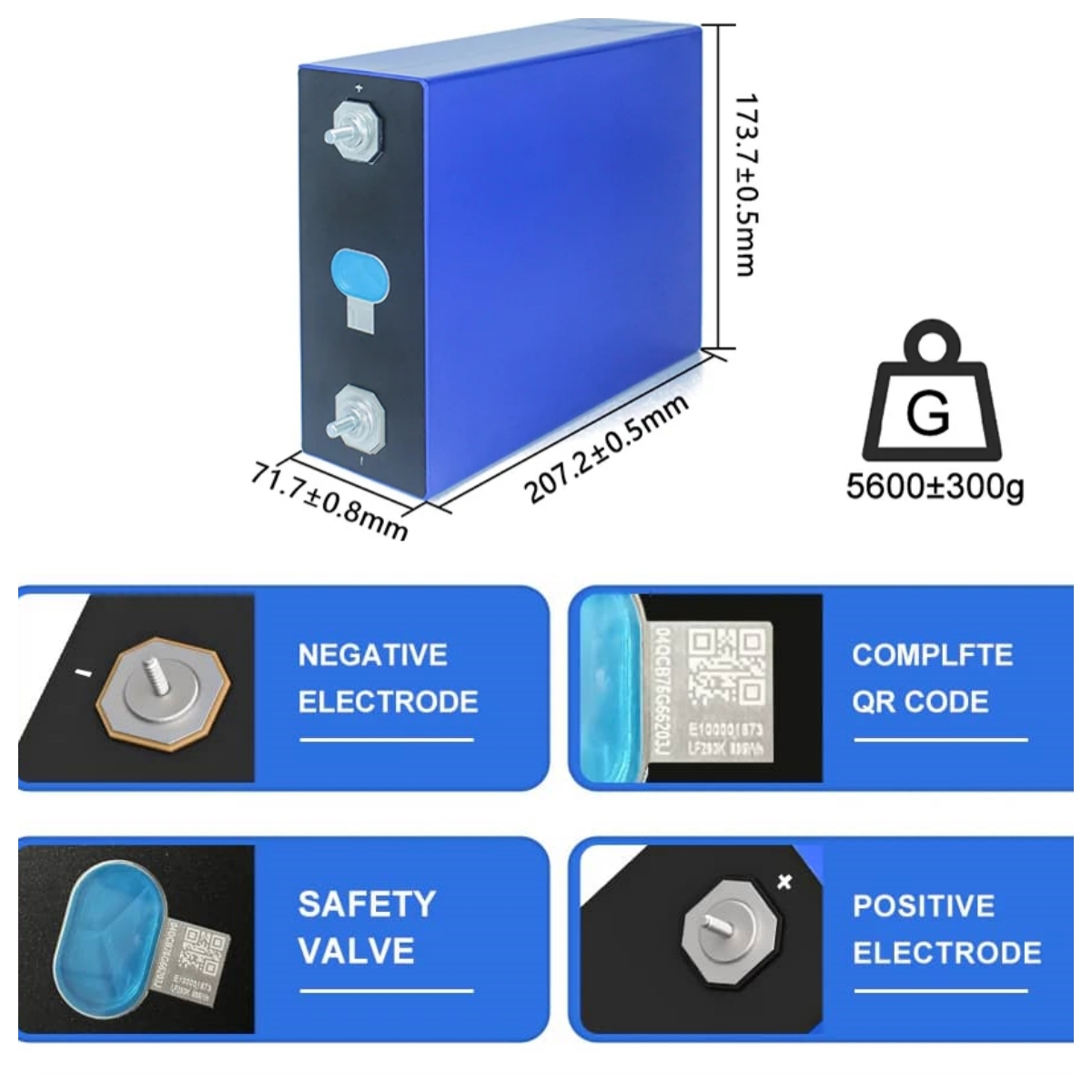

Dimension and Details
Certification
- 1. International regulatory certification, we have CE、ROHS、RECHAR、BIS、EPR、RCM、PSE、GOST、MIC...
- 2.In the product testing report, we have IEC62368、IEC62619、IEC62620、CB、GB、CCC、CCS...
- 3.In international transportation, we have UN38.3 (support sea, land and air transportation)、MSDS、UL、ATEX...
- 4.Special certificates: ESG、 ASPICE CL2、 ISO26262、 TISAX、Green Factory...
- 5.We support certification according to the needs of our customers to ensure product quality and safe transportation
