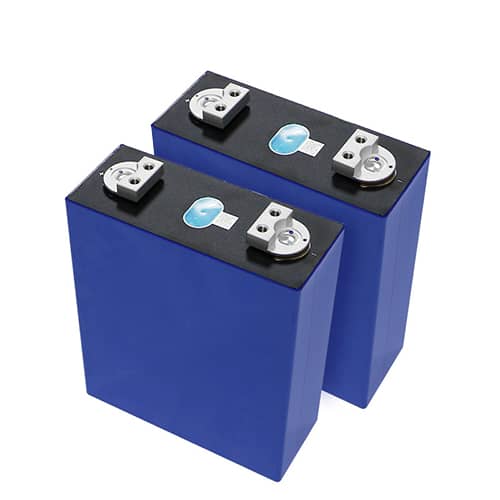

EVE LF304 3.2V 304Ah LiFePO4 Battery Prismatic Cell

Product Details:

Place of Origin: China

Brand Name: EVE

Certification: CE

Model Number: LF304

Payment & Shipping Terms:

Retail Price: /

Wholesale Price: Negotiable

Packaging Details: cartons or plywoods

Payment Terms: T/T

  • Nominal Capacity: 304Ah Nominal Voltage: 3.2V
  • Internal Impedence: ≤0.3mΩ Operating Votage: 2.5V~3.65V
  • Dimension: 207.2*204.4*71.7mm Battery Weight: 5.48kg

Product Description

EVE LF304 3.2V 304Ah Lithium Iron Phosphate Battery features a low internal resistance design, high discharge rate, and stable discharge platform, making it ideal for a wide range of applications, including electric vehicles, Golf Carts, Electric Forklifts, BOATS, Electric Power Systems, Solar Energy Storage Systems and more.

We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!

Product Features

  • · High Consistency: Fully automated production lines and high-precision equipment ensure battery consistency.
  • · Stable Performance: Low internal resistance, high discharge rate, and stable discharge.
  • · Long Lifespan: Up to 4000 cycles, with a capacity retention rate of ≥80% under (25°C 0.5C/0.5C) conditions.
  • · High Safety: High-precision explosion-proof valve design, ensuring safety with no leakage.
  • · Environmentally Friendly: Certified by environmental management systems.

Specification

Item Parameter
Model Number EVE-LF304
Nominal Voltage 3.2V
Nominal Capacity 304Ah
Cycle Life(25°C) >3500 cycles
Cycle Life(45°C) >1800 cycles
Working Voltage 2.5-3.65V
Internal Resistance ≤ 0.5mΩ
End of discharge Voltage 2.5V
Charge Method CC/CV
Standard charge and discharge Charge/Discharge Current 0.5C/0.5C
Continuous Charge/Discharge Current 1C/1C
Pulse Charge/Discharge Current(30s) 2C/2C
Recommended SOC window 10%-90%
Charging Working Temperature 0°C -60°C
Discharging Working Temperature -30°C -60°C
Dimensions(mm) L173.5*W72.0*H208.8mm
Weight 5.49KGS
Shell Material Aluminum

Dimension and Details

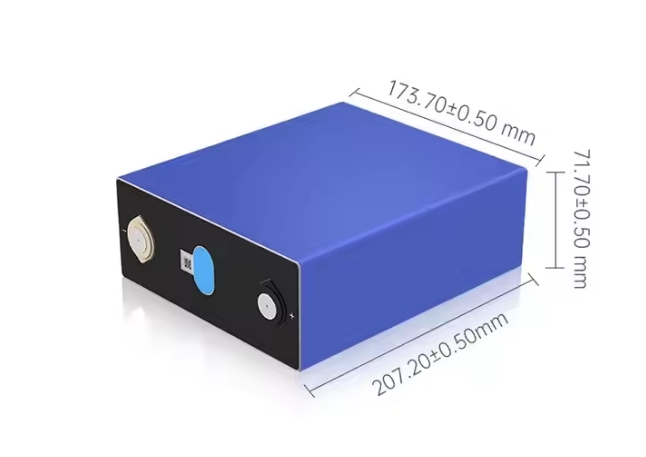

EVE LF304 Dimension

Electrical Performance Diagram

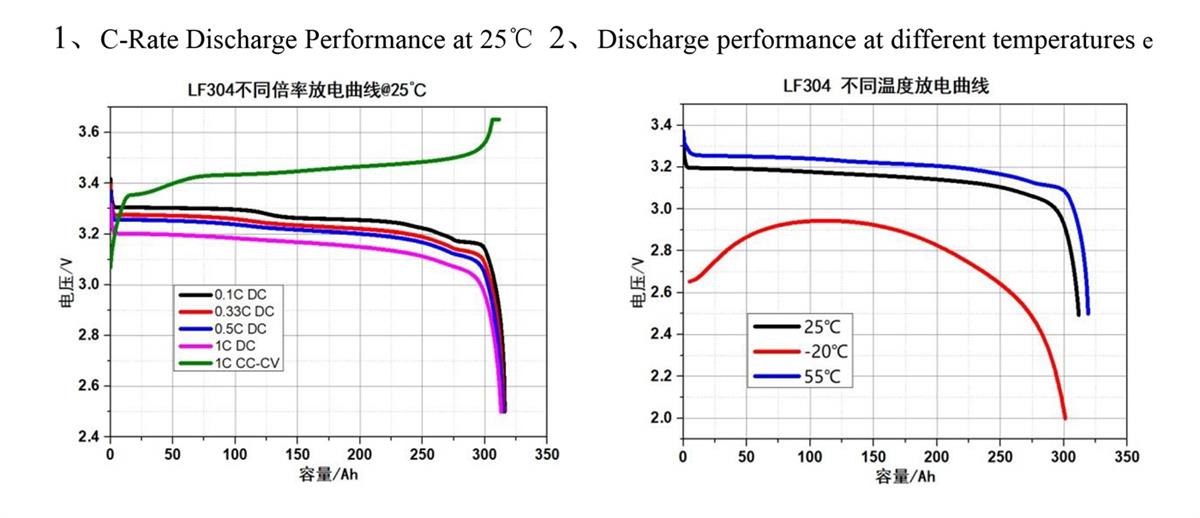

EVE LF304 Electrical Performance Diagram

Certification

  • 1. International regulatory certification, we have CE、ROHS、RECHAR、BIS、EPR、RCM、PSE、GOST、MIC...
  • 2.In the product testing report, we have IEC62368、IEC62619、IEC62620、CB、GB、CCC、CCS...
  • 3.In international transportation, we have UN38.3 (support sea, land and air transportation)、MSDS、UL、ATEX...
  • 4.Special certificates: ESG、 ASPICE CL2、 ISO26262、 TISAX、Green Factory...
  • 5.We support certification according to the needs of our customers to ensure product quality and safe transportation

Application

EVE LF304 Application
