EVE LF230 3.2V 230Ah Lithium Ion Battery Prismatic LiFePO4 Cells

Product Details:

Place of Origin: China

Brand Name: EVE

Certification: CE

Model Number: LF230

Payment & Shipping Terms:

Retail Price: /

Wholesale Price: Negotiable

Packaging Details: cartons or plywoods

Payment Terms: T/T

  • Nominal Capacity: 230Ah Nominal Voltage: 3.2V
  • Internal Impedence: ≤0.5mΩ Operating Votage: 2.0V-3.65V
  • Dimension: 207.20*173.9*53.85(mm) Battery Weight: 4.14kg±124g

Product Description

EVE LF230 3.2V 230Ah Lithium Iron Phosphate Battery features a low internal resistance design, high discharge rate, and stable discharge platform, making it suitable for electric vehicles, electric forklifts, golf carts, boats, communications, smart networks, solar energy storage systems, and more.

We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!

Product Features

  • · High Consistency: Fully automated production lines and high-precision equipment ensure battery consistency.
  • · Stable Performance: Low internal resistance, high discharge rate, and stable discharge.
  • · Long Lifespan: Up to 4000 cycles, with a capacity retention rate of ≥80% under (25°C 0.5C/0.5C) conditions.
  • · High Safety: High-precision explosion-proof valve design, ensuring safety with no leakage.
  • · Environmentally Friendly: Certified by environmental management systems.

Specification

Item Parameter
Battery Brand EVE
Battery Model LF230
Min. Capacity 230Ah
Min. Energy 736.0Wh
Initial internal resistance ≤0.5mΩ
Nominal Voltage 3.2V
Charging Cut-off Voltage 3.65V
Discharging Cut-off Voltage 2.5V (T>0℃), 2.0V (T≤0℃)
Standard Charging Current 115.0A (0.5C)
Standard Discharging Current 230.0A (1.0C)
Cycle Life 4000 Cycles @80% DOD
Charging Temperature 0℃~65℃
Discharging Temperature -35℃~65℃
Dimension 207.20*173.9*53.85(mm)
Weight 4140±124g

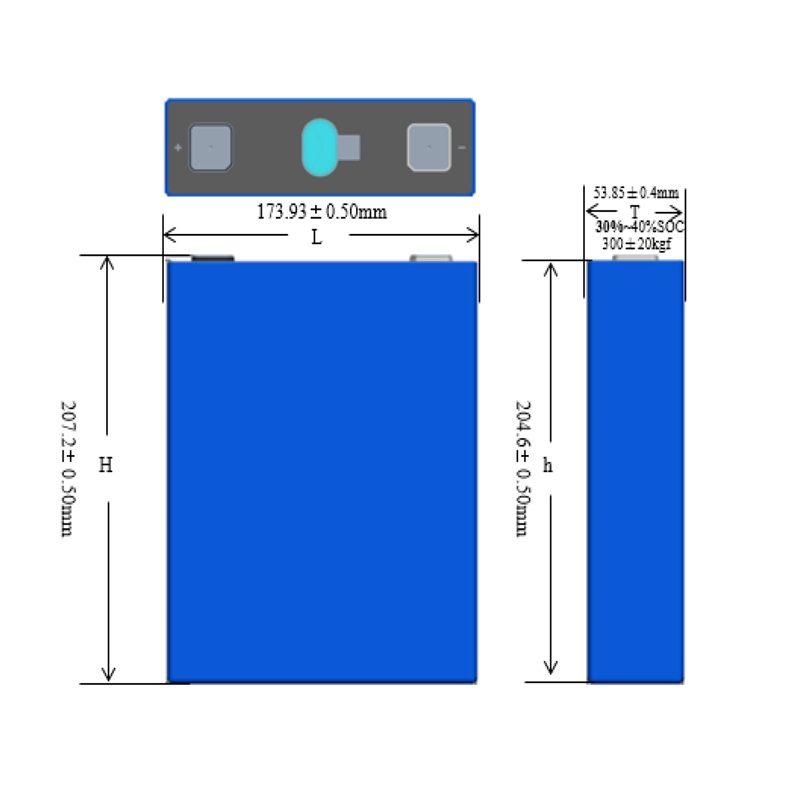

Dimension and Details

EVE LF230 Dimension

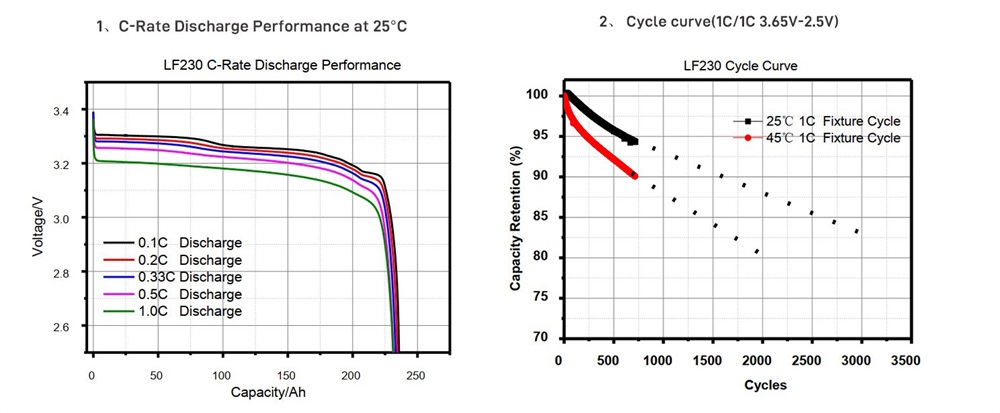

Electrical Performance Diagram

EVE LF230 Electrical Performance Diagram

Certification

  • 1. International regulatory certification, we have CE、ROHS、RECHAR、BIS、EPR、RCM、PSE、GOST、MIC...
  • 2.In the product testing report, we have IEC62368、IEC62619、IEC62620、CB、GB、CCC、CCS...
  • 3.In international transportation, we have UN38.3 (support sea, land and air transportation)、MSDS、UL、ATEX...
  • 4.Special certificates: ESG、 ASPICE CL2、 ISO26262、 TISAX、Green Factory...
  • 5.We support certification according to the needs of our customers to ensure product quality and safe transportation
