EVE LF105 3.2V 105Ah LiFePO4 Battery Cell for EV Car Solar System
Product Details:
Place of Origin: China
Brand Name: EVE
Certification: CE
Model Number: LF105
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 105Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤0.3mΩ Operating Votage: 2.5V-3.65V
- Dimension: 130*36*200mm Battery Weight: 1.98±0.10kg
Product Description
EVE LF105 3.2V 105Ah Lithium Iron Phosphate Battery features a low internal resistance design, high discharge rate, and stable discharge platform, making it ideal for a wide range of applications, including electric vehicles, Electric Forklifts, Golf Carts, BOATS, Electric Power Systems, Solar Energy Storage Systems.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Product Features
- · High Consistency: Fully automated production lines and high-precision equipment ensure battery consistency.
- · Stable Performance: Low internal resistance, high discharge rate, and stable discharge.
- · Long Lifespan: Up to 4000 cycles, with a capacity retention rate of ≥80% under (25°C 0.5C/0.5C) conditions.
- · High Safety: High-precision explosion-proof valve design, ensuring safety with no leakage.
- · Environmentally Friendly: Certified by environmental management systems.
Specification
| Item | Parameter | Remark | |
|---|---|---|---|
| Typical Capacity | 106.5 Ah @ 1.0C discharge | Discharge current 1.0C with 2.5V
cut off. (25±2)°C |
|
| Minimum Capacity | 105.0 Ah @ 1.0C discharge | ||
| Typical Voltage | 3.2V | Under 0.5CA cc-discharge | |
| AC Impedance Resistance | 0.32mΩ±0.05mΩ | ||
| Charge current （CC-CV） |
Max Charge Current | 1C | The maximum charge current of the battery does not exceed 1C Cut under 0°C ～45°C . |
| Cut-off Voltage | 3.65V | ||
| Discharge | Max Discharge Current | 3C | Preference value. |
| Cut-off Voltage | 2.5V | ||
| Charging time | Standard | 2.0h | 0.5C charge (time is reference) |
| Quick-charge | 1.0h | 1C charge (time is reference) |
|
| Recommend SOC Window | SOC：10%~90% | ||
| Charging Temperature | 0°C ~65°C | ||
| Discharging Temperature | -35°C ~65°C | ||
| Storage Temperature | One month | -20°C ~45°C | |
| One year | 0°C ~35°C | ||
| Storage Humidity | ＜70﹪ | ||
| Cycle life | ≥4000cycle | 25°C , 80% DOD | |
| Weight | 1980g±60g | ||
| Dimension(W*T*H) | 130.3*36.35*200.5mm | ||
Dimension and Details
Electrical Performance Diagram

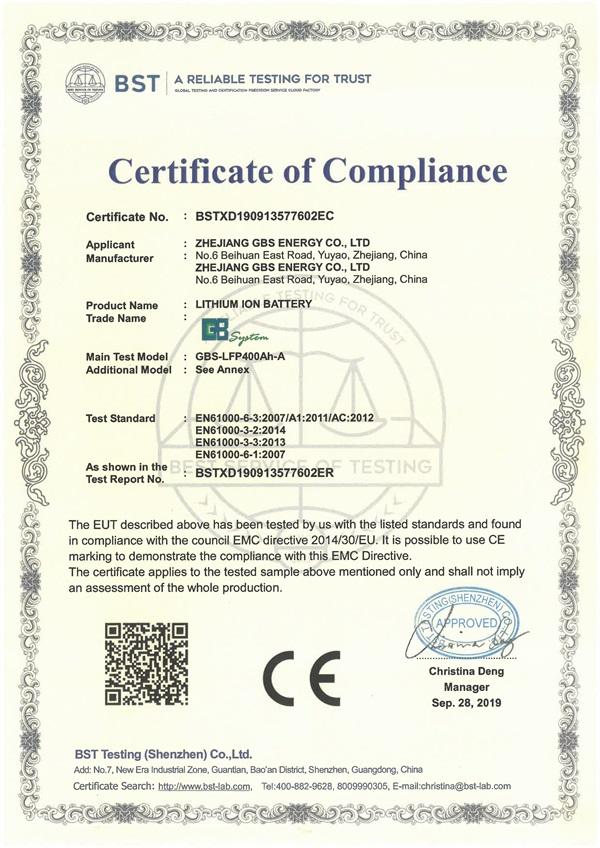

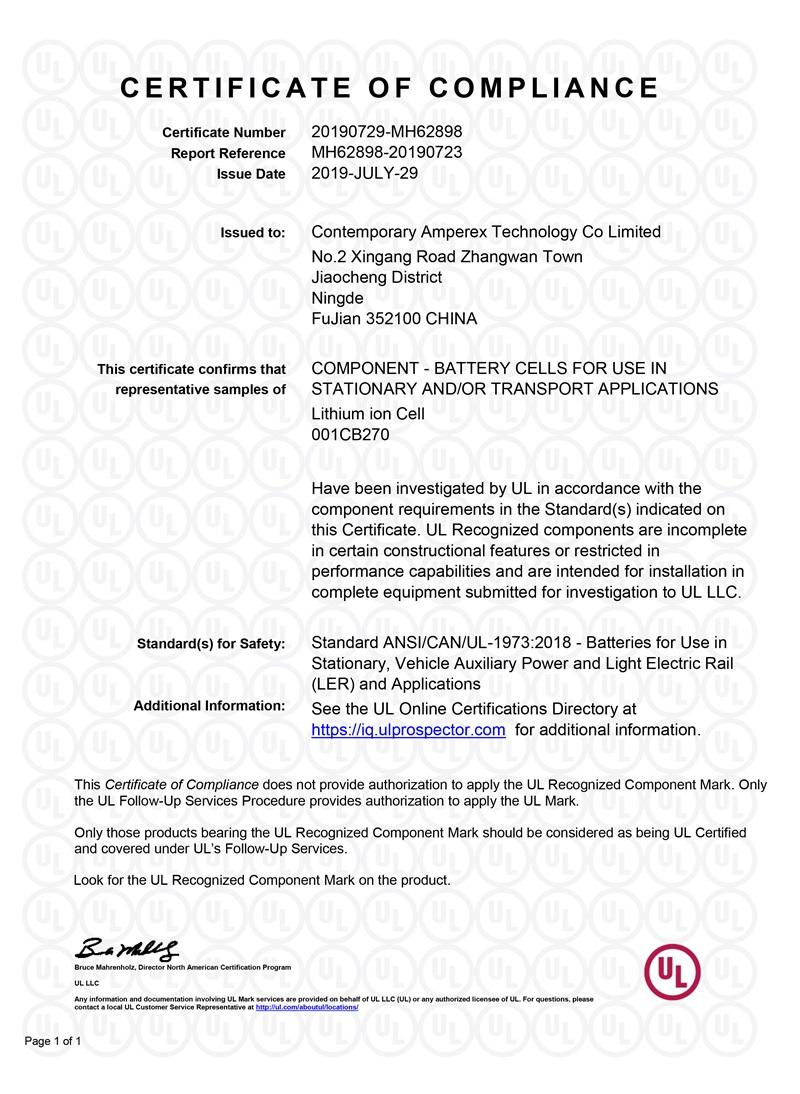

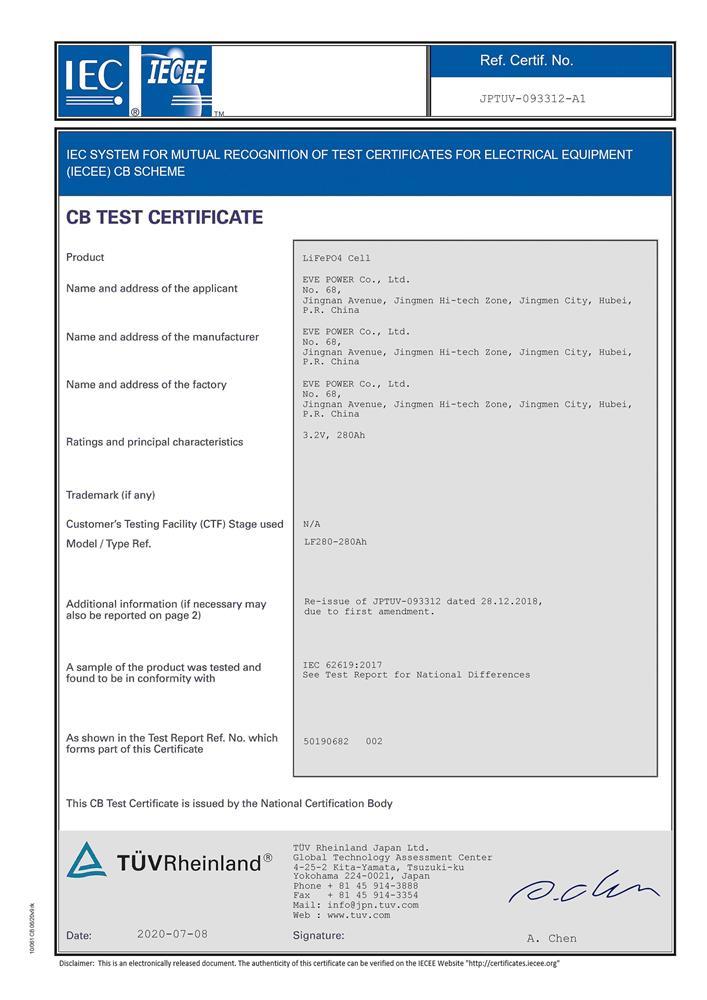

Certification
- 1. International regulatory certification, we have CE、ROHS、RECHAR、BIS、EPR、RCM、PSE、GOST、MIC...
- 2.In the product testing report, we have IEC62368、IEC62619、IEC62620、CB、GB、CCC、CCS...
- 3.In international transportation, we have UN38.3 (support sea, land and air transportation)、MSDS、UL、ATEX...
- 4.Special certificates: ESG、 ASPICE CL2、 ISO26262、 TISAX、Green Factory...
- 5.We support certification according to the needs of our customers to ensure product quality and safe transportation
Application
