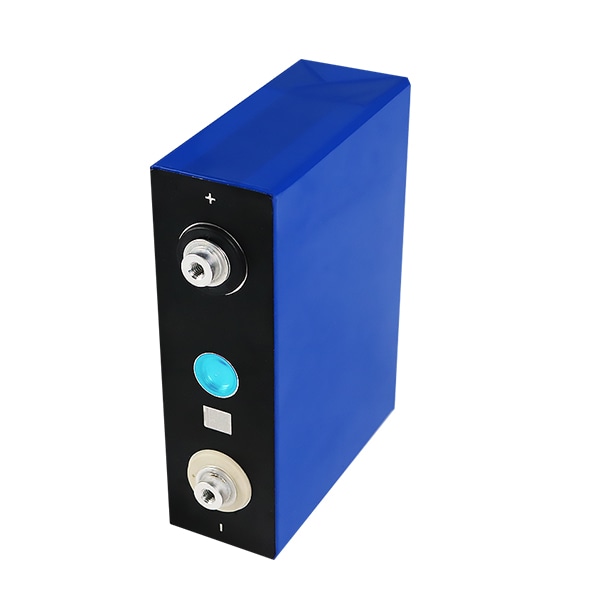

EVE LF100LA 3.2V 100Ah LiFePO4 Cell
Product Details:
Place of Origin: China
Brand Name: EVE
Certification: CE
Model Number: LF100LA
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 100Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤0.5mΩ Operating Votage: 2.5V-3.65V
- Dimension: 118.5*160*50.1mm Battery Weight: 1.98±0.05 kg
Product Description
EVE LF100LA 3.2V 100Ah Lithium Iron Phosphate Battery features a low internal resistance design, high discharge rate, and stable discharge platform, making it ideal for a wide range of applications, including Utility ESS、Commercial and Industrial ESS、Residential ESS、Telecom ESS、Marine Power.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Product Features
- · High Consistency: Fully automated production lines and high-precision equipment ensure battery consistency.
- · Stable Performance: Low internal resistance, high discharge rate, and stable discharge.
- · Long Lifespan: Up to 5000 cycles, with a capacity retention rate of ≥80% under (25°C 0.5C/0.5C) conditions.
- · High Safety: High-precision explosion-proof valve design, ensuring safety with no leakage.
- · Environmentally Friendly: Certified by environmental management systems.
- · Customization: Tailored to customer requirements.
Specification
| Item | Parameter |
|---|---|
| Battery Brand | EVE |
| Battery Model | LF100LA |
| Min. Capacity | 100Ah |
| Min. Energy | 320Wh |
| Initial internal resistance | ≤0.5mΩ |
| Nominal Voltage | 3.2V |
| Charging Cut-off Voltage | 3.65V |
| Discharging Cut-off Voltage | 2.5V (T>0℃), 2.0V (T≤0℃) |
| Standard Charging Current | 50A(0.5C) |
| Max. Continuous charging/discharging Current | 100A 1.0C |
| Max. Pulse charging/discharging Current | 200A 2C(30S) |
| Cycle Life | 4000 Cycles @80% DOD |
| Charging Temperature | 0℃~55℃ |
| Discharging Temperature | -20℃~55℃ |
| Dimension | 118.5*160*50.1mm |
| Weight | 1.98±0.05 kg |
| Encapsulation mode | U-shaped capsule |

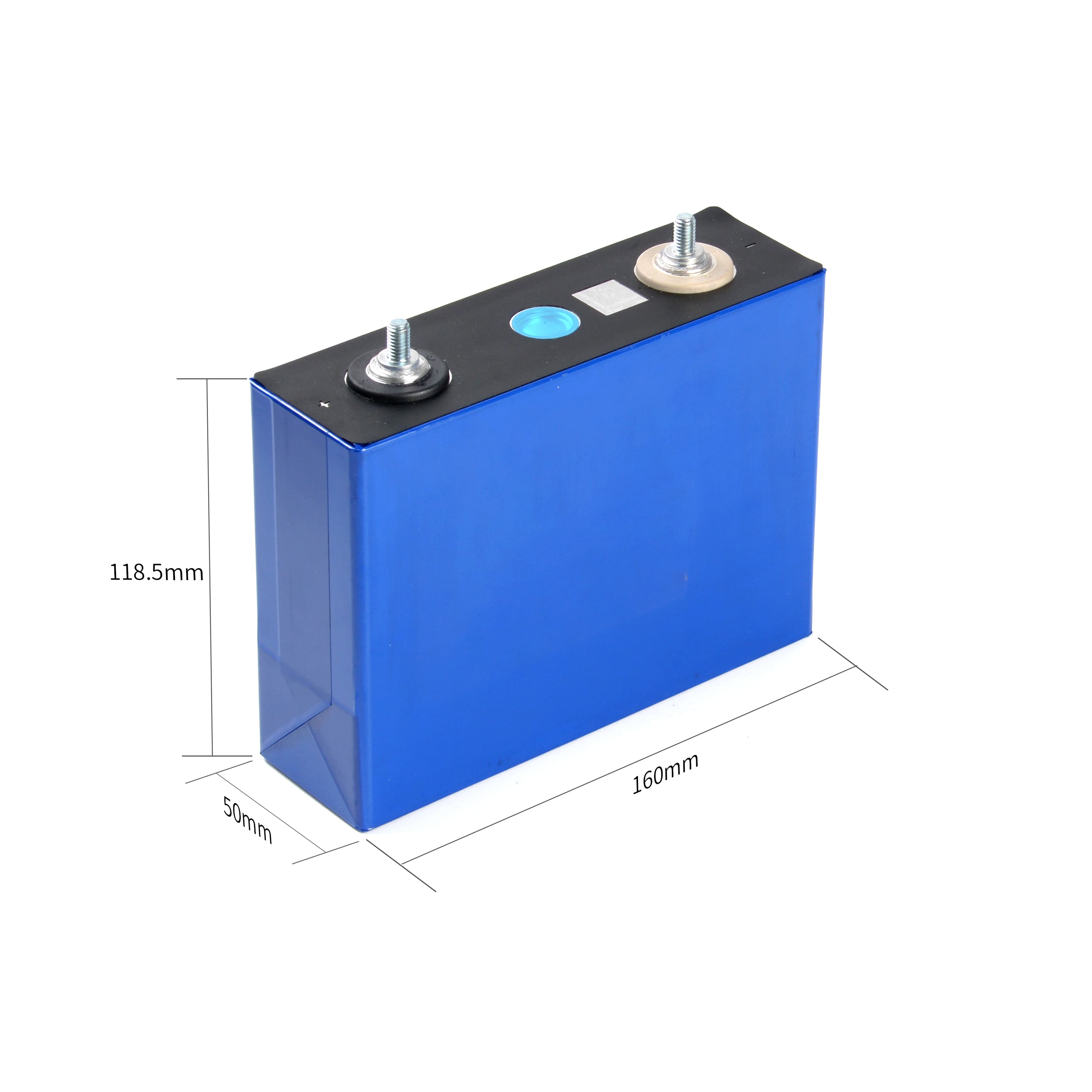

Dimension and Details
Electrical Performance Diagram
Certification
- 1. International regulatory certification, we have CE、ROHS、RECHAR、BIS、EPR、RCM、PSE、GOST、MIC...
- 2.In the product testing report, we have IEC62368、IEC62619、IEC62620、CB、GB、CCC、CCS...
- 3.In international transportation, we have UN38.3 (support sea, land and air transportation)、MSDS、UL、ATEX...
- 4.Special certificates: ESG、 ASPICE CL2、 ISO26262、 TISAX、Green Factory...
- 5.We support certification according to the needs of our customers to ensure product quality and safe transportation
