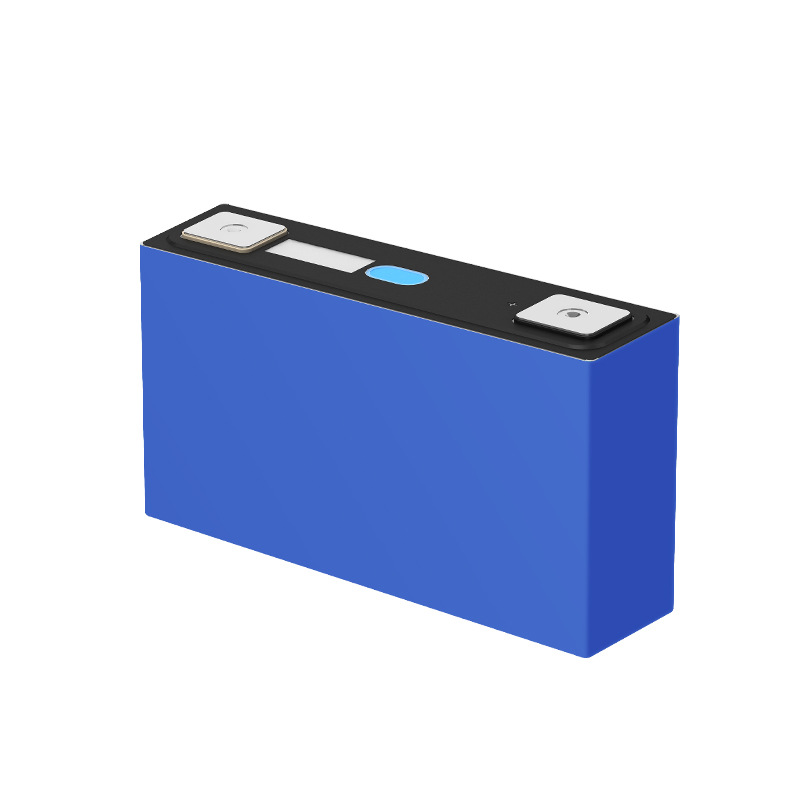

EVE A31-V1 3.2V 132.5Ah LiFePO4 Battery Cell
Product Details:
Place of Origin: China
Brand Name: EVE
Certification: CE
Model Number: A31-V1
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 132.5Ah Nominal Voltage: 3.22V
- Internal Impedence: ≤0.3mΩ Operating Votage: 2.50V-3.65V
- Dimension: (194±0.5)x(50.7±0.3)x(112.7±0.4)mm Battery Weight: 2370 ± 30g
Product Description
EVE A31-V1 3.2V 132.5Ah Lithium Iron Phosphate Battery features a low internal resistance design, high discharge rate, and stable discharge platform, making it ideal for a wide range of applications, including electric vehicles, Golf Carts, Electric Forklifts, Electric Power Systems, Solar Energy Storage Systems.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Product Features
- · High Consistency: Fully automated production lines and high-precision equipment ensure battery consistency.
- · Stable Performance: Low internal resistance, high discharge rate, and stable discharge.
- · Long Lifespan: Up to 2000 cycles, with a capacity retention rate of ≥80% under (25℃ 0.33/0.33C) conditions.
- · High Safety: High-precision explosion-proof valve design, ensuring safety with no leakage.
- · Environmentally Friendly: Certified by environmental management systems.
Specification
| Parameter | Specification | Remarks |
|---|---|---|
| Min. Capacity | 132.5Ah | 1/3C , 25±2℃, 2.50V-3.65V |
| Min. Energy | 426.7Wh | 1/3C , 25±2℃, 2.50V-3.65V |
| Initial IR | ≤0.3mΩ | AC, 1kHz, 21%SOC |
| Nominal Voltage | 3.22V | 1/3C, 25±2℃, 2.50V-3.65V |
| Weight | 2370±30g | / |
| Charging Cut-off Voltage (Max) |
3.65V | / |
| Discharging Cut-off Voltage (Min) |
2.50V ( >20℃) 2.00V (-30℃≤T≤20℃) |
/ |
| Fast Charge Performance | 20min (3C) | 10%~80%SOC, 25±2℃ |
| Dimension | (194±0.5)x(50.7±0.3)x(112.7±0.4)mm | |
| Cycle Performance |
2000 Cycles (25℃ fast charge cycle ) |
Under 300kgf±20kgf clamping force, 3%~100%DOD, 2.50V-3.65V, fast charge/1C discharge; Capacity retention≥80% 3%~100%DOD |
| 1200 Cycles (35℃ fast charge cycle ) |
||
| Operating Temperature | -20℃~ 55℃ | Charging Temperature |
| -30℃~55℃ | Discharging Temperature | |
| Storage Temperature |
-40℃~55℃ (≥30d) | Delivery SOC State (21% 3%SOC) |
| 55℃~60℃ (＜30d ) | ||

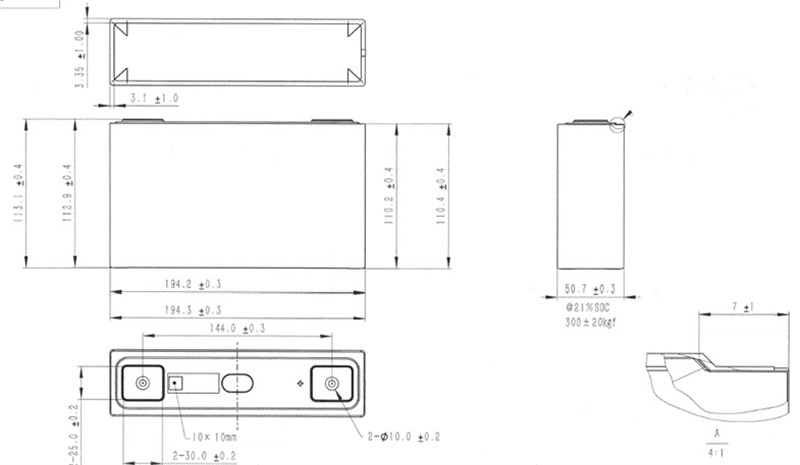

Dimension and Details
Certification
- 1. International regulatory certification, we have CE、ROHS、RECHAR、BIS、EPR、RCM、PSE、GOST、MIC...
- 2.In the product testing report, we have IEC62368、IEC62619、IEC62620、CB、GB、CCC、CCS...
- 3.In international transportation, we have UN38.3 (support sea, land and air transportation)、MSDS、UL、ATEX...
- 4.Special certificates: ESG、 ASPICE CL2、 ISO26262、 TISAX、Green Factory...
- 5.We support certification according to the needs of our customers to ensure product quality and safe transportation

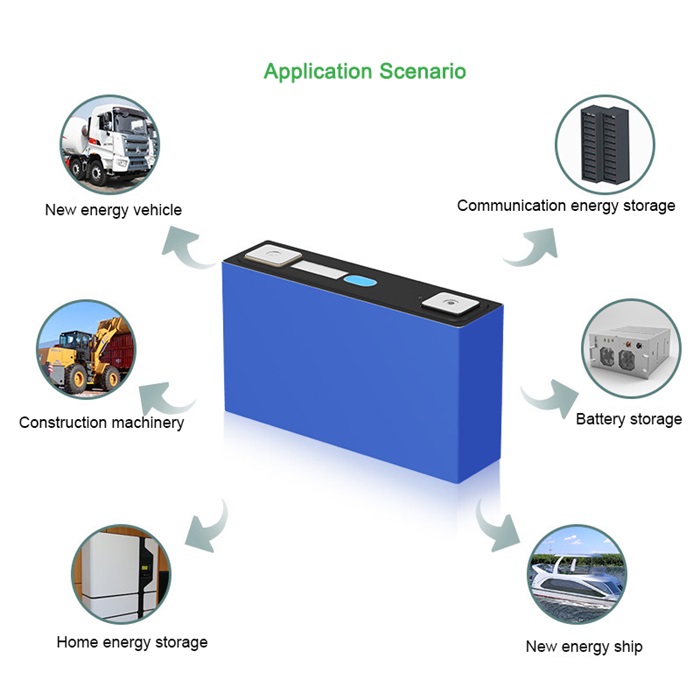

Application
