EVE 48100 48V 100Ah LiFePO4 Battery Pack For ESS And Telecom
Product Details:
Place of Origin: China
Brand Name: EVE
Certification: CE
Model Number: 48100
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 100Ah Nominal Voltage: 48V
- Internal Impedence: / Operating Votage: /
- Dimension: 410*442*177.5mm Battery Weight: About 45Kg
Product Description
EVE 48100 48V 100Ah Rechargeable LiFePO4 Battery Pack has a cycle life exceeding 3,500 cycles.It is suitable for outdoor marginal stations, distributed base stations, indoor macro base stations, microcell base stations, other small-capacity end power supply stations, and new energy stations.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Product Features
- 1.Standard and maintenance free design which is fully compatible with telecom 19 inch cabinets;
- 2.Long cycle life which can reach3,500 times of cycles with 80%DOD until 80%SOC left;
- 3.Small internal resistance for excellent high power performance;
- 4.Reliable performance in wide range of service temperature;

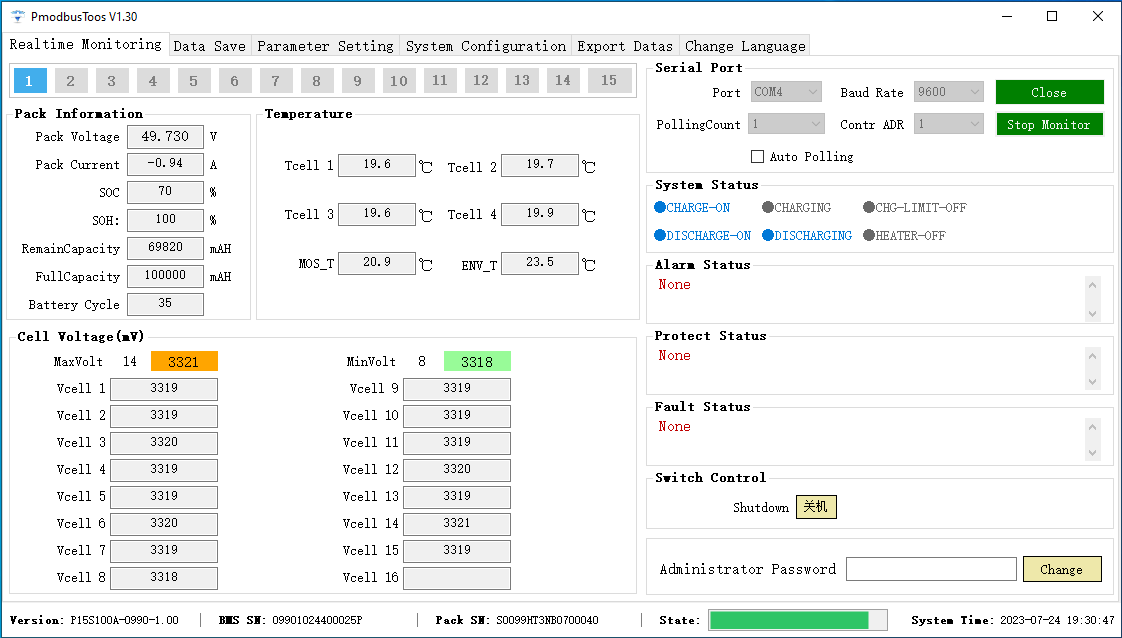

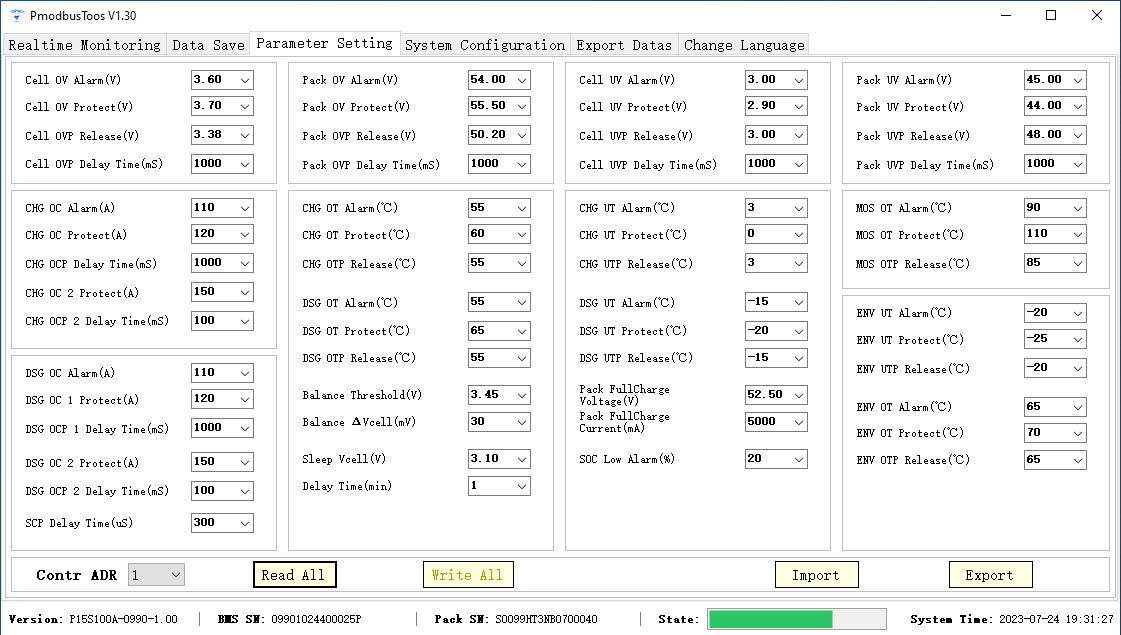

- 5.The build-in BMS with various protection and communication functions ensures the reliable batteryperformance and remote real-time monitoring of battery data;
- 6.Be able to workin parallel for large capacity applications;
Specification
| Items | Parameters | Remarks |
|---|---|---|
| Rated Capacity | 100Ah | 25°C±3°C, 0.2C constant current discharging, 40.5V cut off |
| Rated Voltage | 48V | |
| Standard Charge Current | 20A（0.2C） | 0.2C CC（Constant current）charge to 54.0V， then CV（constant voltage）charge， cut off when charging current≤0.05C. |
| Max Continuous Charge Current | 50A（0.5C） | Do not exceed 0.5C |
| Max Charge Current | 100A（1C） | Requirement: 1 cycle/day |
| Charge Cut Off Voltage | 54.0V | Equalized Charge Voltage：53.5V Floating Charge Voltage：51.0V |
| Standard Discharge Current | 20A（0.2C） | 0.2C CC（Constant Current）discharge, cut off @40.5V. |
| Max Continuous Discharge Current | 50A（0.5C） | Continuous 50Adischarge |
| Max Discharge Current | 100A(1C) | Requirement: 1 cycle/day |
| Discharge Cut Off Voltage | 40.5V | 2.7V/Cell, 40.5V / Pack. |
| Max Pulse Discharge Current | 130A | 25°C±3°C,≤1s |
| Working Temperature (charge) | 0°C~55°C | 0°C-10°C：continuous 20A（max）charge 10°C-45°C: continuous 50A（max）charge 45°C-55°C：continuous 20A（max）charge |
| Working Temperature (discharge) | -20°C~55°C | Battery can work at specified temperature range with capacity loss in tolerance. |
| Storage temperature | -20°C～ 45°C | (short term) Within 1 month |
| Storage temperature | 0°C～35°C | (long term) Within 1 year |
| Battery Weight | About 45Kg | |
| Battery Impendence | ≤30mΩ | DC Internal Resistance |
| Charge/Discharge Efficiency | ≥95% | Charge/discharge efficiency in Wh (round trip efficiency) at 0.2C charge and discharge current，25°C. |

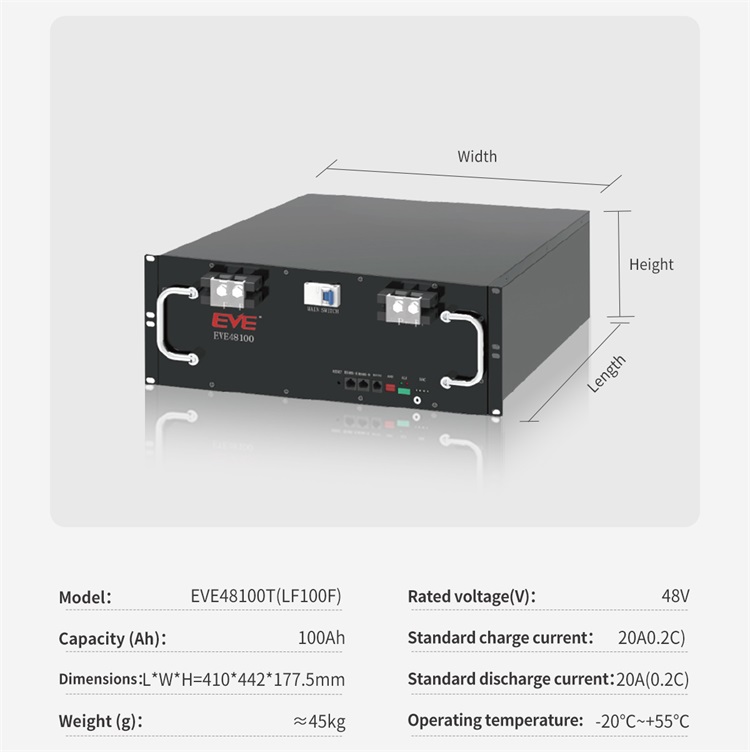

Dimension and Details
Certification
Application
Outdoor marginal stations,distributed base stations,indoor macro base stations,Microcell base stations and other small capacity,end power supply stations,new energy stations
