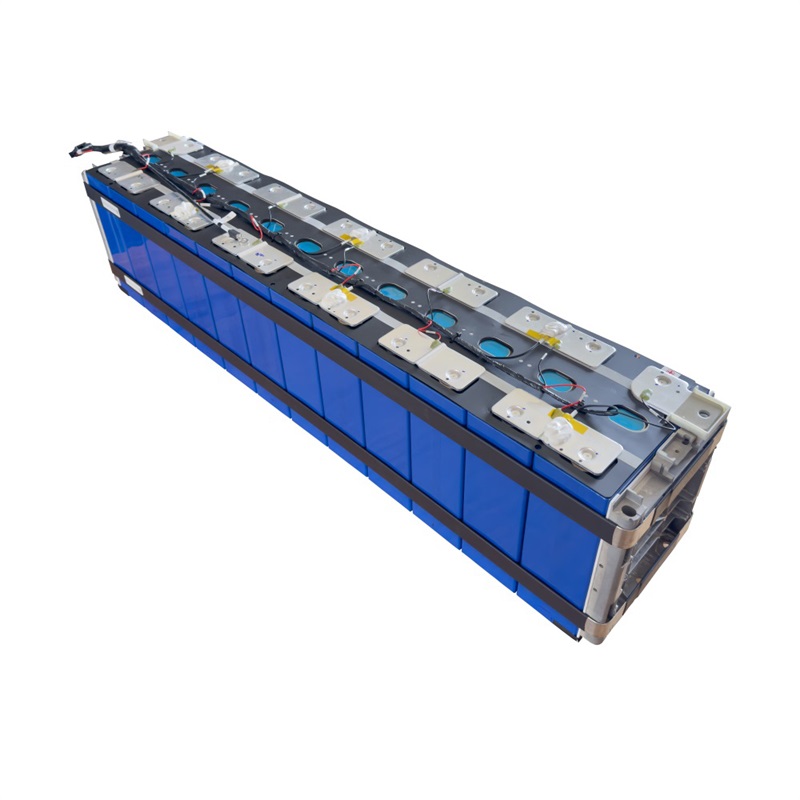

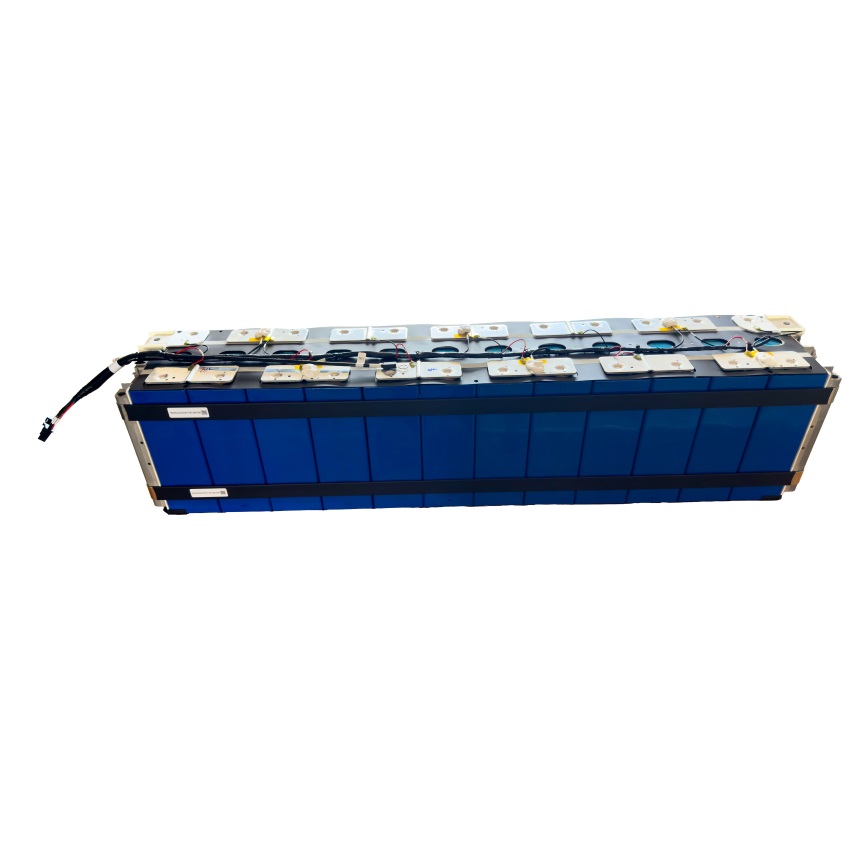

EVE 1P12S 36V 38.4V 280Ah LiFePO4 Battery Module For ESS
Product Details:
Place of Origin: China
Brand Name: EVE
Certification: CE
Model Number: BM-12-38.4-280
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 280Ah Nominal Voltage: 38.4V, 1P12S
- Internal Impedence: / Operating Votage: /
- Dimension: L913.6×W173.5×H213.9mm Battery Weight: 67±2Kg
Product Description

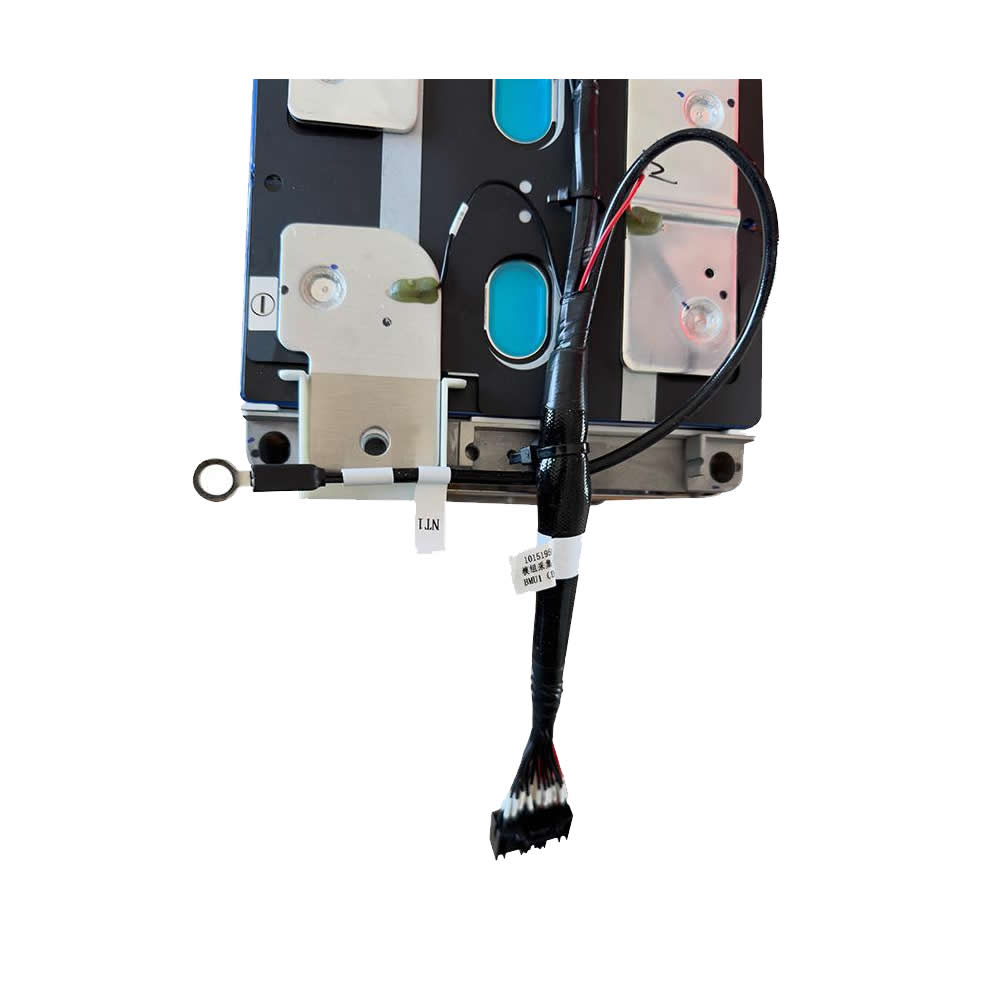

The BM-12-38.4/280 battery module consists of 12 LF280K cells in series and is integrated with acquisition wires to collect voltage and temperature data internally. It is suitable for Utility ESS, Telecom ESS, and Commercial and Industrial ESS applications.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Parameters of Cell
| Items | Specification |
|---|---|
| Cell type | LiFePO4 |
| Cell specification | LF280K |
| Minimum capacity | 280Ah, 0.5C, 25±2℃, 2.5-3.65V |
| Minimum energy | 896Wh, 0.5C, 25±2℃, 2.5-3.65V |
| Initial internal resistance | ≤0.25mΩ, AC, 1kHz, 40%SOC |
| Nominal voltage | 3.2V, 0.5C, 2.5-3.65V |
| Weight | 5420g±300g |
| Charge cut-off voltage (Umax.) | 3.65V |
| Discharge cut-off voltage (Umin.) | 2.5V (>0℃), 2.0V(≤0℃) |
Parameters of Battery Module
| Parameter | Specification |
|---|---|
| Model | BM-12-38.4-280 |
| Dimension | L913.6×W173.5×H213.9mm |
| Weight | 67±2Kg |
| Nominal Capacity | 280Ah, 0.5P,25±2℃,30-43.8V |
| Nominal Voltage | 38.4V, 1P12S |
| Cell specification | LF280K |
| AC internal resistance | ≤4mΩ, AC1KHz |
| Insulation internal resistance | ≥550MΩ, 1000V DC |
| Standard charge discharge current/power | 0.5C/P2, 25±2℃,2.5-3.65V |
| Battery module charge cut-off voltage (max.) | 43.8V, 25±2℃,12×3.65V |
| Battery module discharge cut-of voltage(min.) | 30V, 25±2℃,12×2.5V |
| Maximum current of charge | 1C, High C rate @25±2℃, 30s |
| Maximum current of discharge | 1C, High C rate @25±2℃, 30s |
| Charge/discharge mode | constant power/current |
| Operating temperature | Charge:0℃～45℃ |
| Discharge:-20℃～55℃ | |
| Storage temperature | -20℃ ～ 45℃; ≤1month |
| 0℃～35℃, ≤1 year | |
| Storage humidity, <70RH(no condensation) |

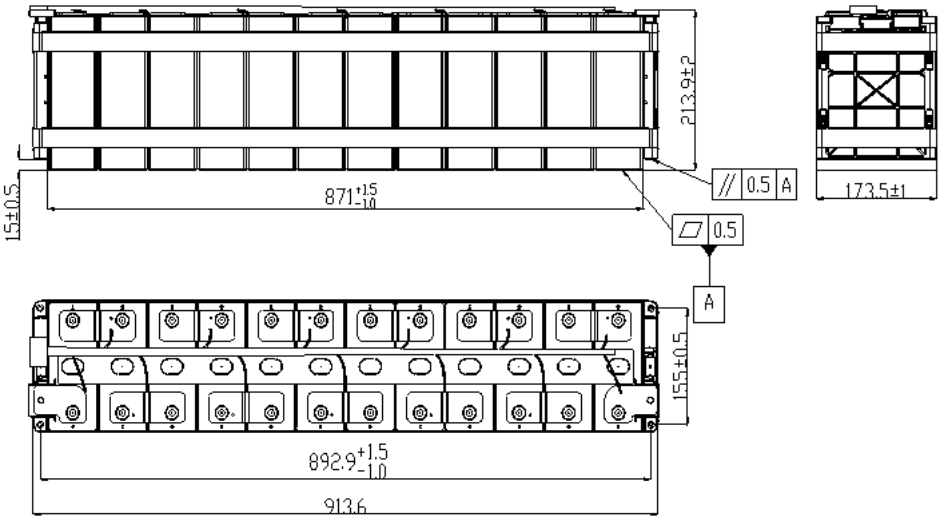

Dimension and Details
Application
