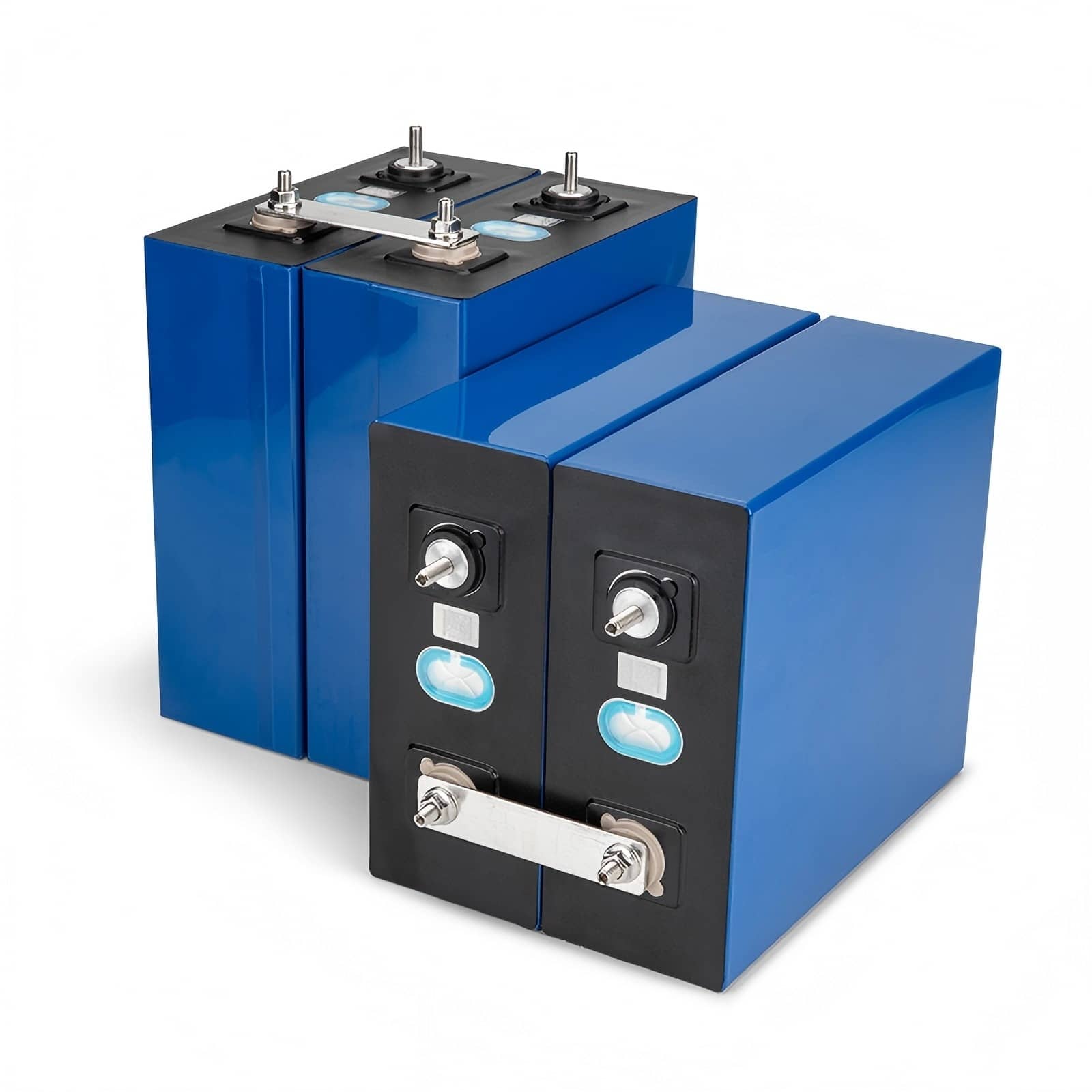

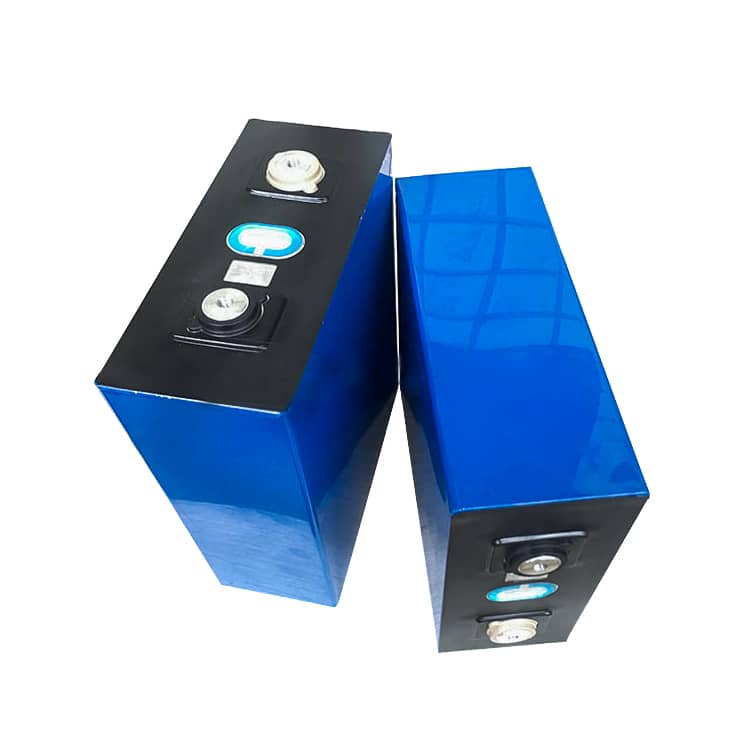

CATL 6LH3L8 3.2V 271Ah LiFePO4 Battery
Product Details:
Place of Origin: China
Brand Name: CATL
Certification: CE
Model Number: 6LH3L8
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 271Ah Nominal Voltage: 3.2V
- Internal Impedence: 0.14±0.05mΩ Operating Voltage: 2.5~3.65V
- Dimension: 207.3*71.6*173.6mm Battery Weight: ≤5.74Kg
Product Description
100% brand new, grade-A CATL 6LH3L8 3.2V 271Ah LiFePO4 Battery, offers a long cycle life, high energy density, and a wide operating temperature range, for Solar energy storage, solar power system, UPS supply, Golf trolley/carts, RV, EV, Caravan So on.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Specification
| Item | Parameters | |
|---|---|---|
| Nominal Capacity | 271Ah | |
| Minimum Capacity | 271 Ah | |
| Operating Voltage | 2.5~3.65V 2.0~3.65V |
|
| Internal Resistance(1KHz) | 0.14±0.05mΩ | |
| Self-discharge Rate(monthly) | ≤3.5% | |
| Standard Charge/discharge Current | 0.5C | |
| Max. Continuous Charge/discharge Current | 1C | |
| Max. pulse discharge current (short pulse) | 3C | |
| Standard Charge Voltage | 3.65V | |
| Discharge Cut-off Voltage | 2.5V 2.0V |
|
| Operating Temperature | Charge | 0~+60℃ |
| Discharge | -30~+60℃ | |
| Storage Temperature | ≤1 month | -20~+45℃ |
| ≥6 months | -20~+35℃ | |
| Dimensions | 207.3*71.6*173.6mm | |
| Weight | ≤5.74Kg | |

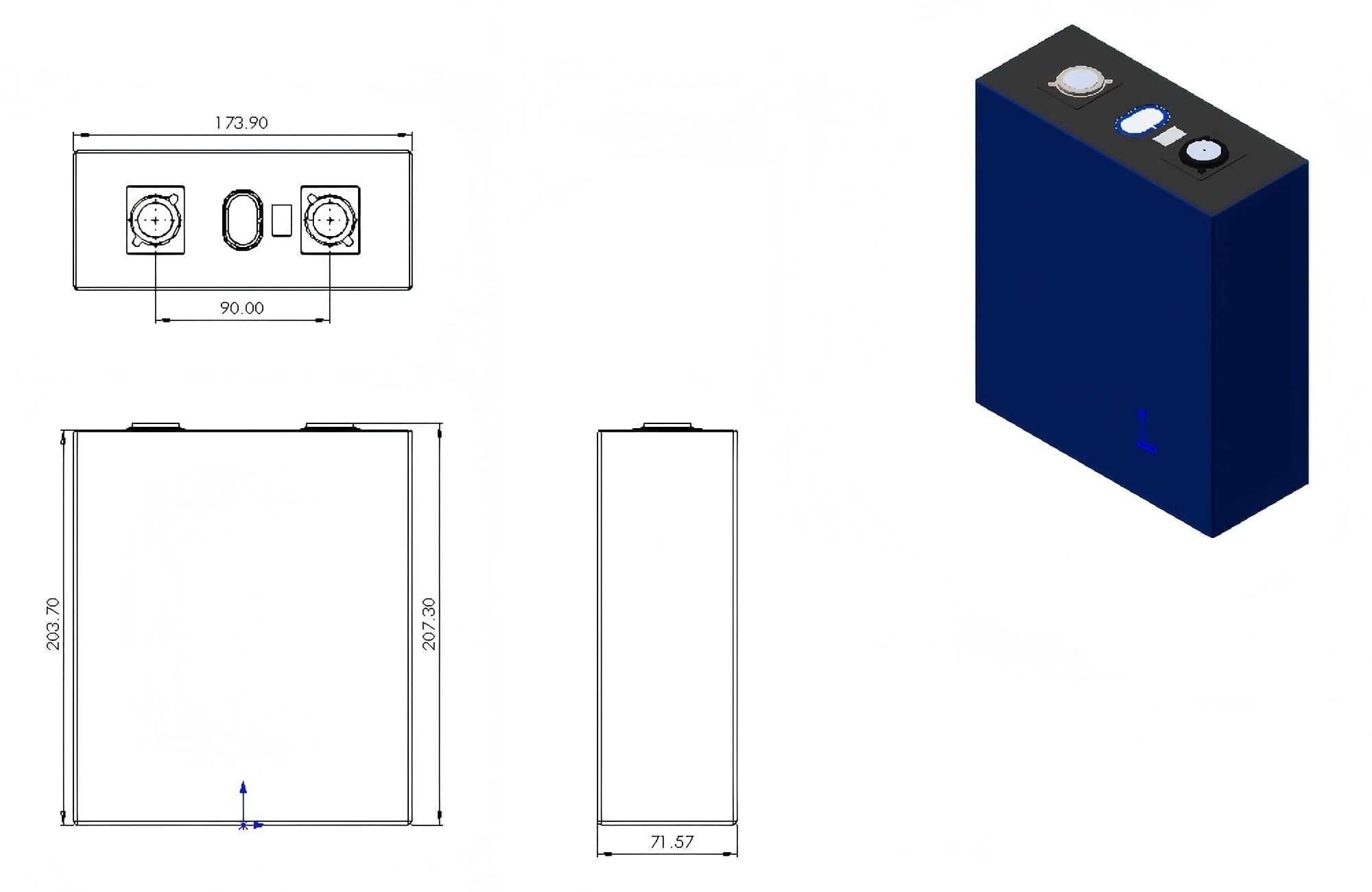

Dimension and Details

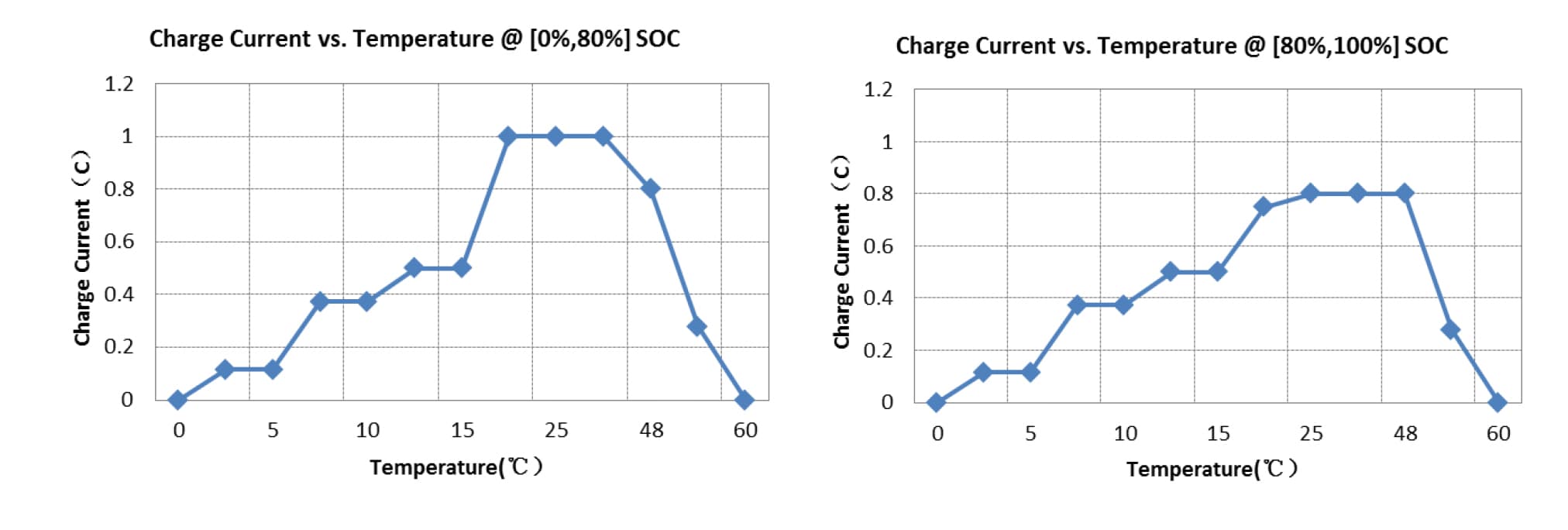

Electrical Performance Diagram
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
