CATL MFH3L8 3.2V 202Ah LiFePO4 Battery
Product Details:
Place of Origin: China
Brand Name: CATL
Certification: CE
Model Number: MFH3L8
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 202Ah Nominal Voltage: 3.2V
- Internal Impedence: 0.16±0.05mΩ Operating Voltage: 2.5~3.65V
- Dimension: 207.3*53.7*173.6mm Battery Weight: 4.12Kg±10g
Product Description
100% brand new, grade-A CATL MFH3L8 3.2V 202Ah LiFePO4 Battery, offers a long cycle life, high energy density, and a wide operating temperature range, for Solar energy storage, solar power system, UPS supply, Golf trolley/carts, RV, EV, Caravan So on.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Specification
| Item | Parameters | |
|---|---|---|
| Nominal Capacity | 202Ah | |
| Minimum Capacity | 202 Ah | |
| Operating Voltage | 2.5~3.65V 2.0~3.65V |
|
| Internal Resistance(1KHz) | 0.16±0.05mΩ | |
| Self-discharge Rate(monthly) | ≤3.5% | |
| Standard Charge/discharge Current | 0.5C | |
| Max. Continuous Charge/discharge Current | 1C | |
| Max. pulse discharge current (short pulse) | 3C | |
| Standard Charge Voltage | 3.65V | |
| Discharge Cut-off Voltage | 2.5V 2.0V |
|
| Operating Temperature | Charge | 0~+60℃ |
| Discharge | -30~+60℃ | |
| Storage Temperature | ≤1 month | -20~+45℃ |
| ≥6 months | -20~+35℃ | |

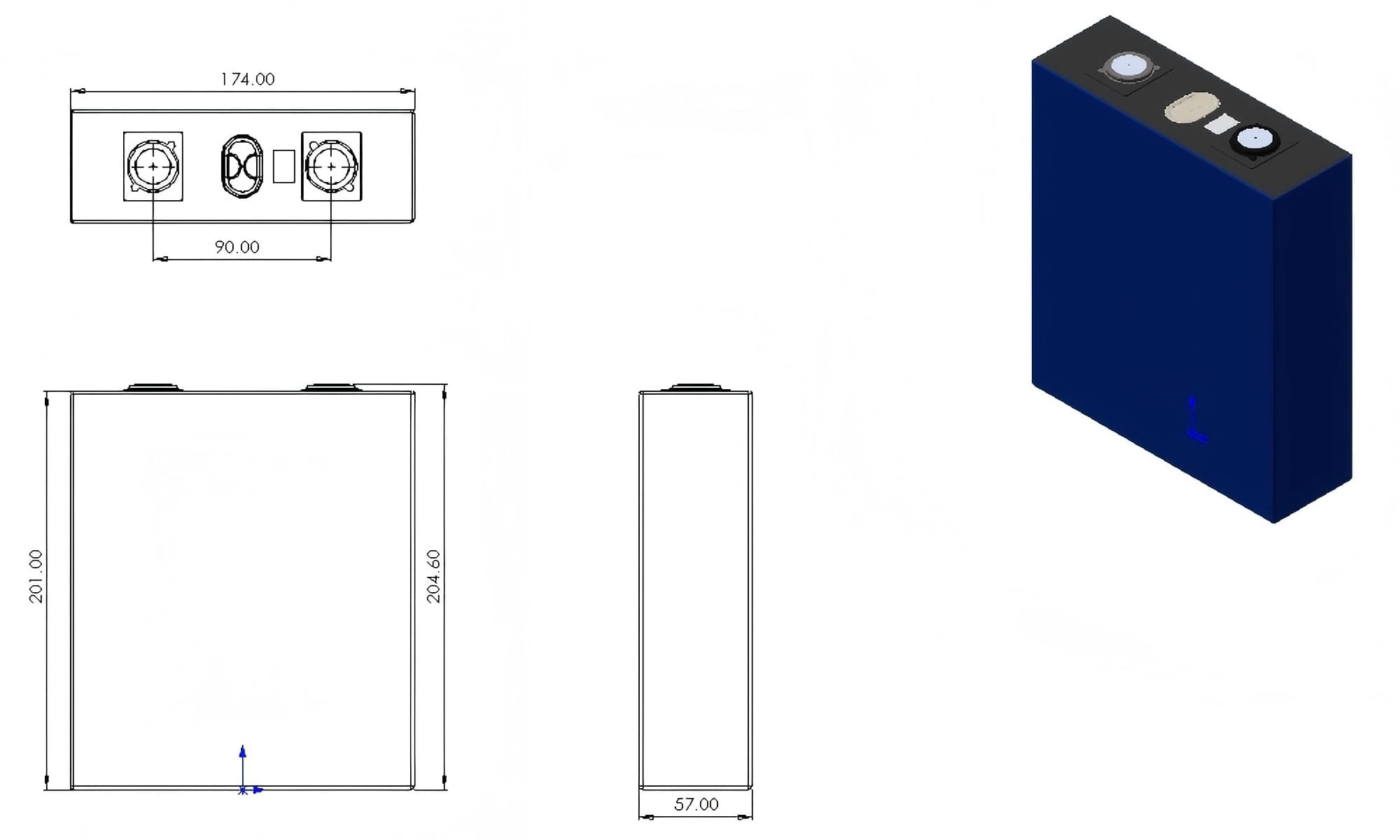

| Dimensions | 207.3*53.7*173.6mm | |
| Weight | 4.12Kg±10g | |

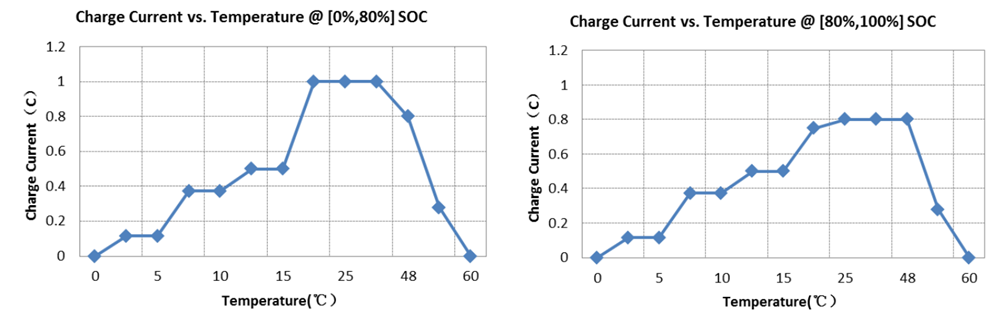

Electrical Performance Diagram
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.The price comes with busbars and bolts, a battery will come with a busbar and bolt set (for example, if you buy a 4-piece battery, we will send you 4-piece cells with 4-piece busbars and nuts and bolts 8 pieces studs) If you need more, please contact us online Thank you!
4.100% Eco-friendly, will not cause pollution pressure to the environment
