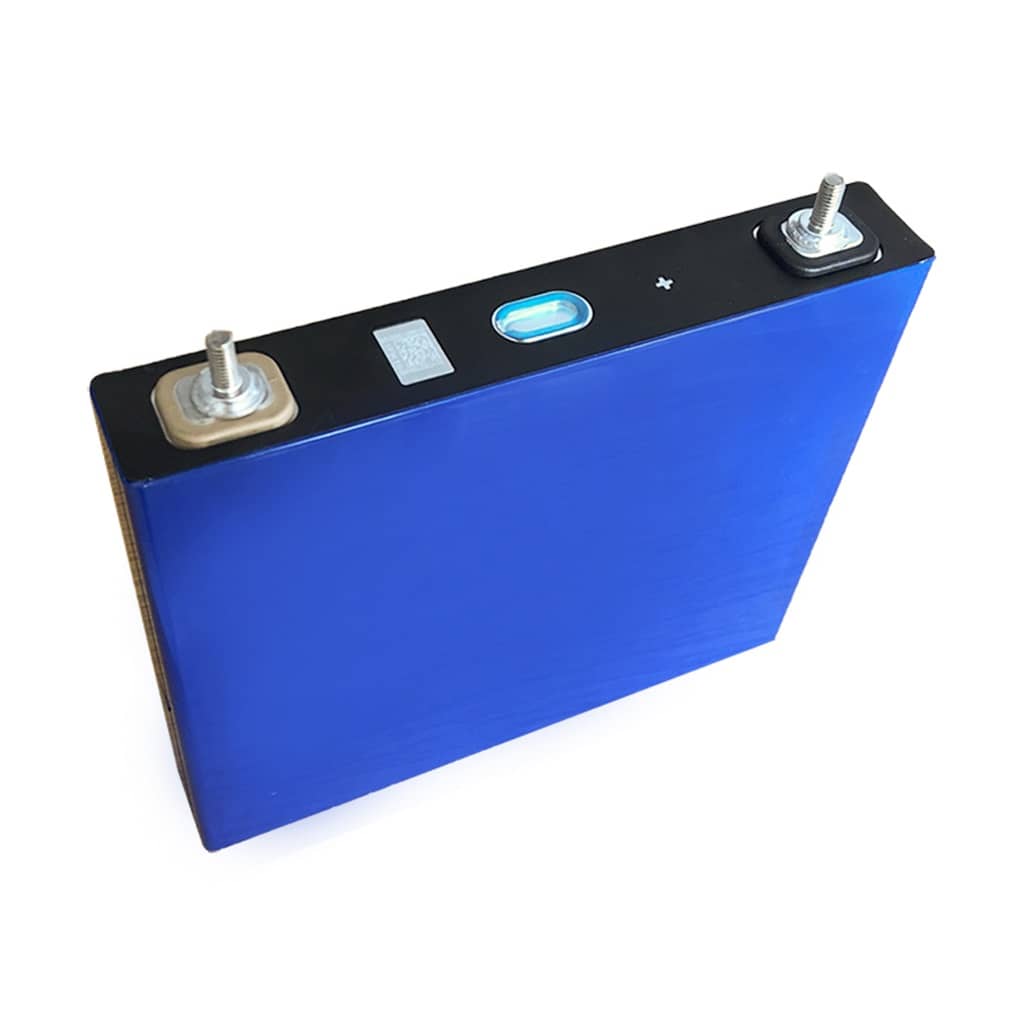

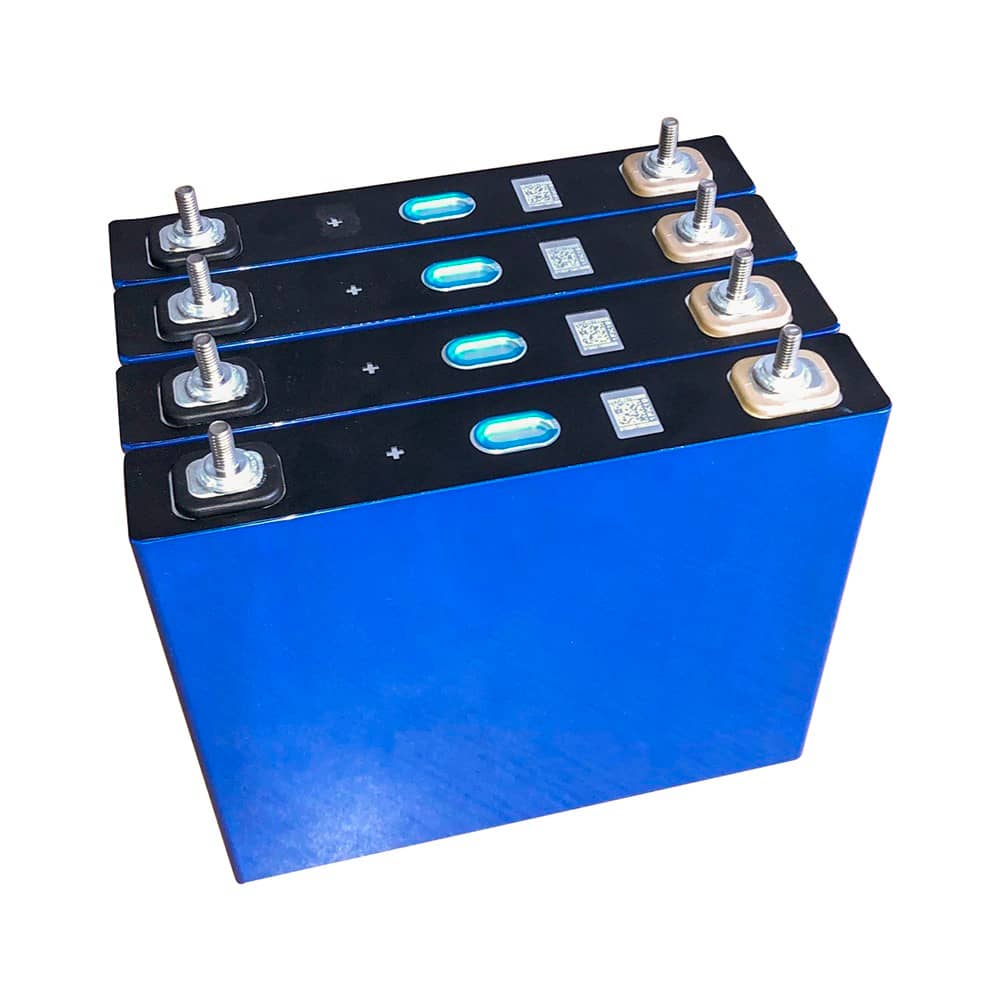

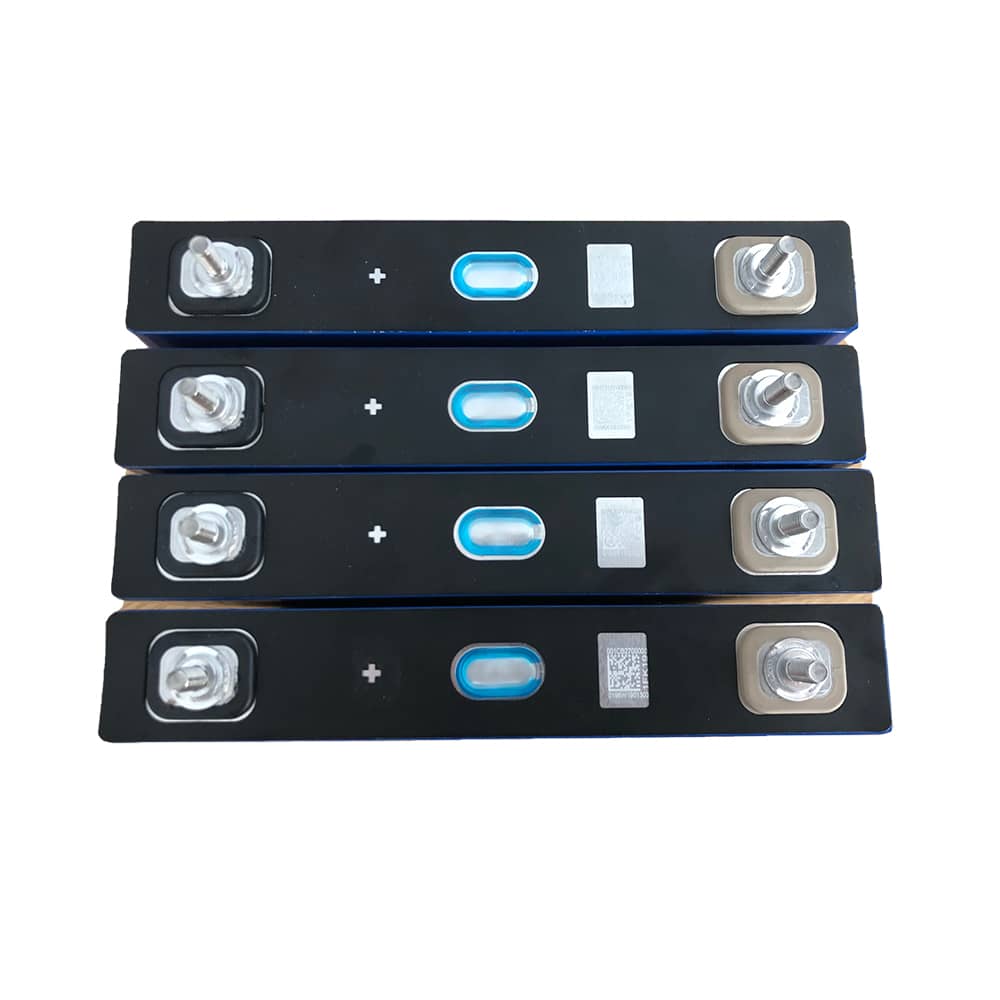

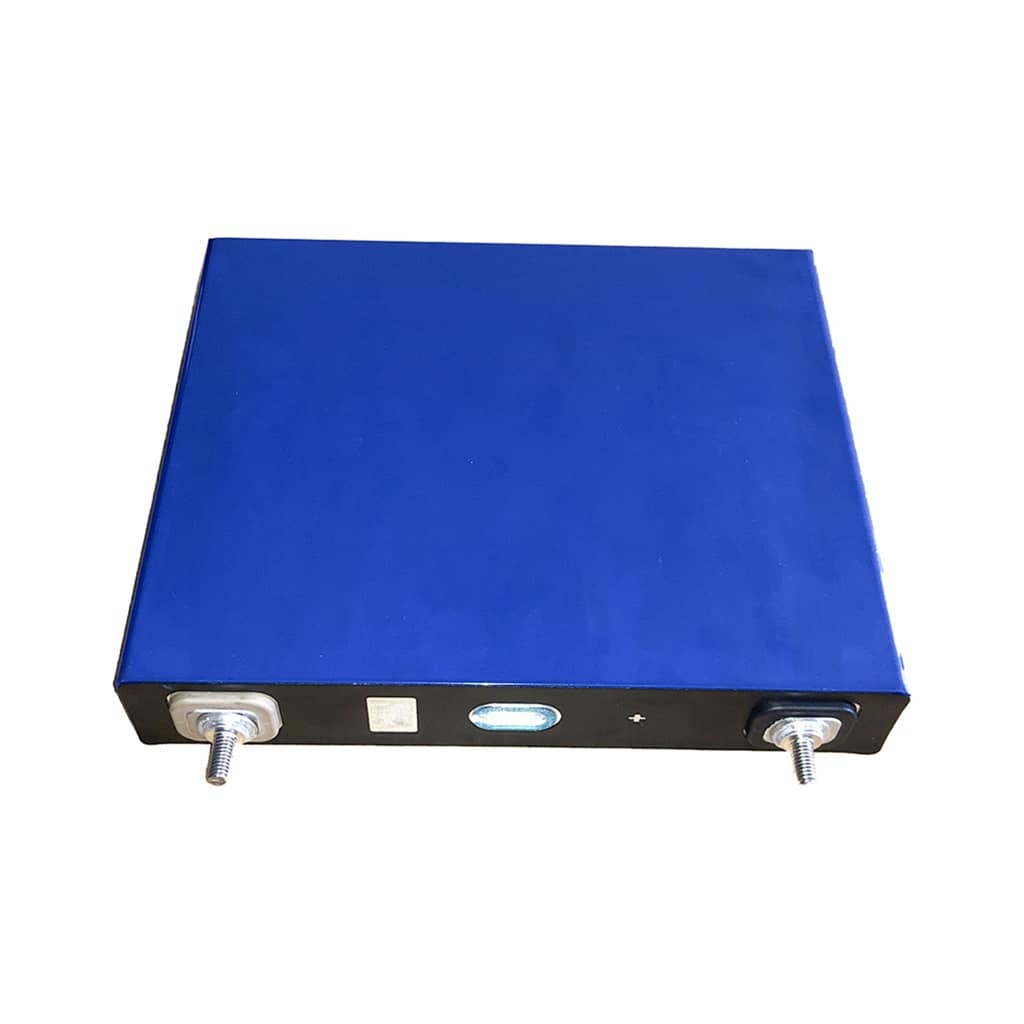

CATL 3.2V 100Ah Battery LiFePO4 Cell
Product Details:
Place of Origin: China
Brand Name: CATL
Certification: CE
Model Number: 001CB270
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 100Ah Nominal Voltage: 3.2V
- Internal Impedence: 0.39±0.05mΩ Operating Voltage: 2.5~3.65V
- Dimension: 200.33*172.2*33.22±0.5mm Battery Weight: 2.27±0.30Kg
Product Description
100% brand new, grade-A CATL 3.2V 100Ah Battery LiFePO4 Cell, offers a long cycle life, high energy density, and a wide operating temperature range, for Solar energy storage, solar power system, UPS supply, Engine starting battery, Electric bicycle/motorcycle/scooter, Golf trolley/carts, RV, EV, Caravan So on.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Specification
| Items | Parameters |
|---|---|
| Typical capacity | 100 Ah |
| Operating voltage | 2.5~3.65V |
| Impedance (1KHz) | 0.39±0.05mΩ |
| Shipping capacity | 40±1Ah |
| Residual capacity | ≤3.5% |
| Operating Temperature range | Charging: 0~55℃, Discharging: -30~55℃ |
| Storage Temperature | -30~60℃ |
| Standard charge current | 0.5C |
| Max. continuous charge current | 1C |
| Standard discharge current | 0.5C |
| Maximum discharge current (continuous) | 1C |
| Typical dimension(W*H*T) | 200.33*172.2*33.22±0.5mm |
| Weight | 2.27±0.30Kg |
Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.The price comes with busbars and bolts, a battery will come with a busbar and bolt set (for example, if you buy a 4-piece battery, we will send you 4-piece cells with 4-piece busbars and nuts and bolts 8 pieces studs) If you need more, please contact us online Thank you!
4.100% Eco-friendly, will not cause pollution pressure to the environment
