Parallel Battery vs Series Battery: Which Battery Configuration is Better for Your Needs?

You might have wondered about battery setups - why some give more voltage while others run longer. The connection method determines this difference. Batteries connected in parallel or series configurations may look alike initially, but each setup serves a different purpose and substantially affects your power system's performance.

Battery connections in parallel and series each have distinct advantages. Series connections increase voltage for high-power applications. Parallel setups boost capacity to run longer. The right configuration becomes a significant factor for your solar power system, electric vehicle, or home energy storage setup. Understanding both options will help you select the best choice that matches your power requirements.

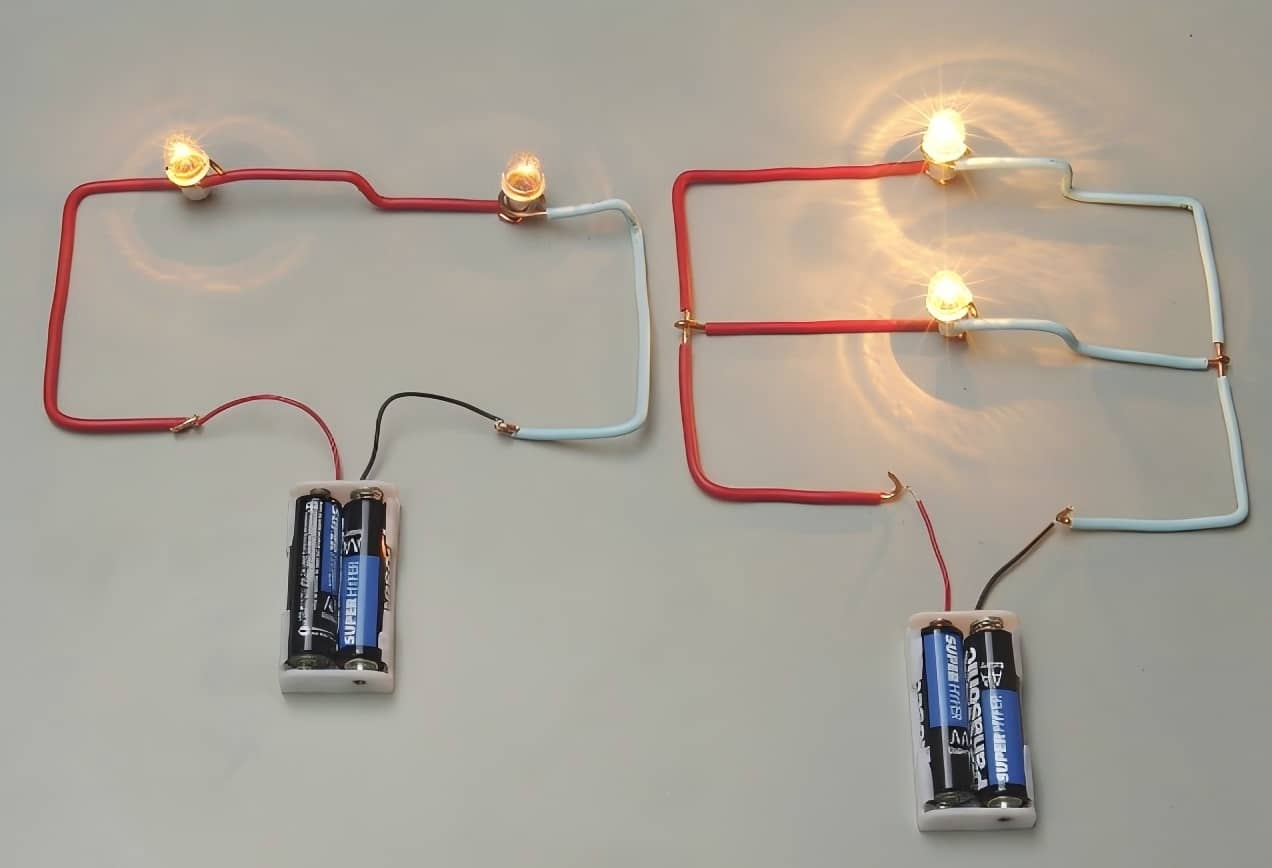

Understanding Battery Configurations

Let's explore the core principles of battery configurations and how they affect power delivery and storage capabilities.

Basic Principles of Series Connections

A series connection creates a chain where each battery's positive terminal connects to the next battery's negative terminal. This setup works like stacking building blocks vertically. The height (voltage) grows while the footprint (capacity) stays constant. To name just one example, two 12-volt batteries connected in series create a 24-volt system that manages to keep the original amp-hour capacity.

Fundamentals of Parallel Connections

Parallel configurations link all positive terminals together and all negative terminals together. Picture building blocks placed side by side. The height (voltage) remains unchanged while the footprint (capacity) grows larger. Two 12-volt, 100Ah batteries connected in parallel keep their 12 volts but double the capacity to 200Ah.

Key Differences in Power Output

Series and parallel configurations create distinct advantages in power output:

Configuration	Voltage Effect	Capacity Effect	Best For
Series	Increases	Stays Same	Higher voltage applications
Parallel	Stays Same	Increases	Extended runtime needs

Key considerations for optimal performance:

• Series Benefits: Lower current draw, thinner wiring possible, reduced voltage drop
• Parallel Advantages: Longer runtime, system redundancy, maintained voltage level

Series connections work best for high-power applications, while parallel setups excel in situations that need extended operation times. Your choice between parallel and series ended up depending on whether you need higher voltage or increased capacity for your specific application.

Performance Comparison

Battery configurations need performance analysis to help make better decisions. Let's get into how these setups work in ground conditions.

Voltage and Capacity Analysis

The relationship between voltage and capacity creates unique performance profiles in parallel vs series configurations. Our tests show series connections have a cumulative voltage effect - two 12V batteries give 24V output while keeping the original capacity. On the other hand, parallel configurations keep the voltage but double the capacity. To name just one example, two 100Ah batteries connected in parallel give 200Ah at the original voltage.

Charging and Discharging Characteristics

Charging behaviors vary by a lot between configurations. Each battery must handle the same current flow in series setups, which makes balanced charging vital. Parallel configurations show more flexible charging traits:

• Charging current spreads evenly across batteries
• Individual units face lower overcharging risks
• One battery's failure doesn't stop the system

System Efficiency and Power Loss

Efficiency differences between parallel vs series circuits affect performance directly. Series connections work better for large-scale applications, especially with devices above 3000 watts. Our analysis shows:

Configuration	Efficiency Factor	Power Loss Consideration
Series	Higher voltage, lower current draw	Minimal cable losses
Parallel	Lower voltage, higher current draw	Greater resistance losses

Solar charge controllers work more effectively with series configurations in larger power systems. A 50A controller at 24V (series) manages 1200 watts, while the same controller at 12V (parallel) handles only 600 watts. This efficiency gap becomes critical in high-power applications where system losses affect overall performance.

Application-Specific Benefits

Our research shows that each application needs specific battery configurations to work at its best. Let's get into how parallel and series setups help in real-life scenarios.

Solar Power Systems

Our solar installation experience proves that parallel battery configurations give you clear advantages. Connecting batteries in parallel for solar systems helps achieve longer energy storage while keeping voltage levels steady. This arrangement brings several benefits:

• More energy storage for nighttime use
• Stable power output on cloudy days
• Backup options if a battery fails

Electric Vehicles

EV manufacturers often use a mixed approach that combines parallel and series connections. Series configurations provide the high voltage needed for powerful motors. Parallel arrangements ensure enough capacity for longer range. Modern EVs are great examples - their battery packs run at 400V or 800V through carefully planned series-parallel combinations.

Home Energy Storage

We customize configurations based on each household's unique needs. Here's how different setups work:

Configuration	Best For	Key Advantage
Series	High-power appliances	Efficient voltage delivery
Parallel	Extended backup time	Increased storage capacity
Series-Parallel	Complete home systems	Balanced performance

Peak power demands and backup duration requirements shape our home energy storage designs. Parallel configurations excel in homes that need standard voltage but lots of energy storage. Series setups work best to power high-voltage appliances.

Our installations show that choosing between parallel and series configurations substantially affects system reliability and performance. Parallel configurations in home systems make it easy to add more batteries without changing system voltage.

Cost and Maintenance Considerations

Your choice between parallel and series battery configurations will affect both performance and cost. Let's get into the financial and maintenance aspects of these setups.

Setup Costs

Series configurations need less upfront investment than parallel setups when we compare costs. Series connections use fewer batteries to reach higher voltages. These cost factors need attention:

Component	Series Setup	Parallel Setup
Wiring	Thinner cables (lower cost)	Thicker cables (higher cost)
Protection Systems	Higher voltage protection	Multiple fusing points
Installation Labor	Less complex	More connection points

Long-term Maintenance Requirements

Battery systems need different maintenance approaches based on their configuration. Parallel setups work best with these vital maintenance practices:

• Regular voltage checks on all parallel strings
• Periodic equalization charging to prevent imbalances
• Monitoring connection points for proper current distribution

Series configurations need more focus on system voltage and each battery's health. Series connections give batteries a slightly longer life because of better voltage distribution.

Replacement Strategies

We've created replacement strategies that work for both configurations. Series setups usually need all batteries replaced at once if one fails because mismatched batteries reduce system efficiency. Parallel configurations give you more options - you can replace single batteries without affecting the whole system.

Battery age and performance matter when planning replacements. For optimal performance, parallel configuration batteries need replacement when capacity drops to 80% of original specs. Series setups need matched batteries of the same model, age, and capacity to keep the system balanced and efficient.

Safety and Best Practices

Battery safety must be the top priority when working with different configurations. Years of hands-on work with parallel and series setups have helped us create complete guidelines that ensure safe and efficient operation.

Installation Guidelines

Our battery system installations follow strict safety protocols. Before touching any battery, proper safety equipment is mandatory:

Safety Item	Purpose
Insulated Tools	Prevent short circuits
Safety Glasses	Protect from sparks
Insulated Gloves	Prevent electrical shock
Fire Extinguisher	Emergency response

Proper cable sizing plays a significant role. Parallel configurations need thicker cables because of higher current flow. Series setups require voltage-rated components.

Monitoring Requirements

A strong Battery Management System (BMS) proves essential for both parallel and series configurations. The system's health stays optimal through:

• Daily voltage and temperature monitoring
• Regular connection point inspections
• Periodic capacity testing
• Systematic charge/discharge cycle tracking

Common Failure Points

Our installations have revealed key areas where battery systems typically fail. Parallel configurations show issues with uneven current distribution. Series setups can suffer from voltage imbalances. The most common failure point comes from improper battery matching.

Batteries in the same system need similar voltage ratings (within ±0.1V), capacity, and internal resistance. Parallel setups handle minor imbalances better than series configurations. Both setups demand quality connections and clean terminals.

Thermal runaway poses a serious safety risk. Proper spacing between batteries and good ventilation prevent this issue. Each parallel string needs appropriate fusing. Series setups require proper voltage protection across the whole string.

Comparison Table

Characteristic	Series Configuration	Parallel Configuration
Voltage Effect	Increases (e.g., 2x12V = 24V)	Stays the same
Capacity Effect	Maintains original capacity	Increases (e.g., 2x100Ah = 200Ah)
Current Draw	Lower current draw	Higher current draw
Wiring Requirements	Thinner cables needed	Thicker cables required
System Efficiency	Higher efficiency in large-scale applications	Lower efficiency because of resistance losses
Best Applications	- High-power appliances - Electric vehicle motors - Large power systems	- Solar energy storage - Extended backup power - Home energy storage
Maintenance	- Batteries need replacement at the same time - Requires matched batteries	- Single battery replacement possible - More flexible maintenance
Installation Complexity	Simpler with fewer connection points	More complex with multiple connection points
Redundancy	Lower redundancy (system affected by single failure)	Higher redundancy (system works even if one battery fails)
Cost Factors	- Lower original wiring costs - Higher voltage protection needed	- Higher wiring costs - Multiple fusing points required
Charging Characteristics	- Needs balanced charging - Same current flows through all batteries	- Even charging current distribution - Lower risk of overcharging

Conclusion

Battery configurations are the foundations of any power system's performance and reliability. Our largest longitudinal study of parallel vs series setups shows that each configuration serves distinct purposes that match different power needs.

Series configurations work best in high-voltage applications. They deliver power efficiently and need simpler wiring. These setups are perfect for electric vehicle systems and high-power equipment when voltage needs go beyond standard levels. Parallel configurations shine in applications that just need extended runtime and redundancy. This makes them ideal for solar storage and backup power systems.

Our research shows that successful implementation needs you to think about several factors. Series setups just need matched batteries and simultaneous replacement to offer higher system efficiency. Parallel configurations give you more flexibility for maintenance and expansion but need strong wiring. They also need careful current distribution management.

Safety comes first whatever configuration you choose. The system works best when you install it properly, monitor it regularly, and follow best practices. We've learned that success isn't just about choosing between parallel vs series. It's about knowing how each configuration arranges with your specific application needs, maintenance capabilities, and safety protocols.

Your specific power needs, budget limits, and maintenance capabilities determine which configuration works best. Both setups have their own advantages. Sometimes combining both in hybrid configurations ends up giving the best results for complex power systems.

FAQs

Which battery configuration charges faster: series or parallel?

Batteries connected in parallel typically take longer to charge than those in series due to their increased amp-hour capacity. However, parallel configurations can be charged faster without damaging the batteries by using appropriate charging methods. Series configurations generally charge more quickly due to their higher voltage.

Do series or parallel battery configurations provide more power?

Series and parallel configurations offer different power advantages. Series connections increase voltage, which is beneficial for high-power applications. For example, two 12V batteries in series would provide 24V. Parallel connections, on the other hand, increase capacity (amp-hours) while maintaining the same voltage. Two 12V 30Ah batteries in parallel would give you 60Ah at 12V, providing longer runtime.

What are the key differences between parallel and series battery configurations?

The main difference lies in how they affect voltage and capacity. Series connections increase the overall voltage by adding the voltages of individual batteries, while parallel connections maintain the same voltage but increase the total capacity (amp-hours). Series is ideal for achieving higher operating voltages, while parallel is best for extending runtime and increasing overall capacity.

Is it possible to combine series and parallel battery configurations?

Yes, it's possible to wire batteries in both series and parallel simultaneously. This is known as a series-parallel configuration. This combination allows you to increase both voltage and capacity, tailoring the battery system to meet specific power requirements. It's commonly used in complex power systems where both higher voltage and increased capacity are needed.

Which configuration is better for solar power systems: series or parallel?

For solar power systems, parallel configurations often offer distinct advantages. They provide longer energy storage duration while maintaining consistent voltage levels. This setup is beneficial for storing more energy for nighttime use, maintaining stable power output during cloudy periods, and providing redundancy if one battery fails. However, the best configuration depends on the specific requirements of your solar power system.
